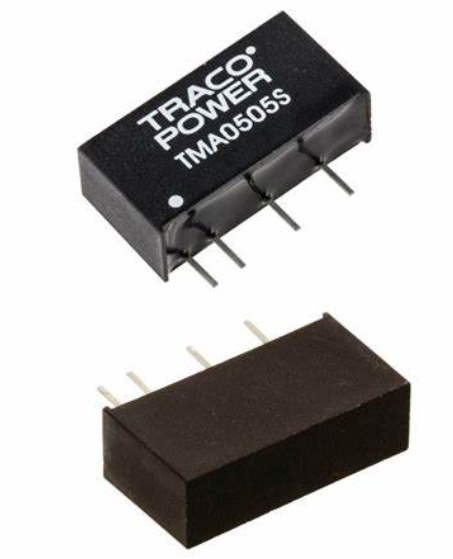

TMA0505S-Traco Power DC/DC Converters

The TMA series are miniature, isolated 1 W DC/DC-converters in a Single-in-Line package (SIP). Requiring only 1.2 cm2 board space they offer the ideal solution in many space critical applications for board level power distribution. The use of SMD technology makes it possible to offer a product with high performance at low cost.

Features

◆ Single-in-line (SIP) package

◆ Single and dual output models

◆ I/O isolation 1‘000 VDC

◆ High efficiency up to 81%

◆ Operating temp. range –40°C to +85°C

◆ Industry standard pinout

◆ 100% Burn-in (8 h)

◆ Lead free design, RoHS compliant
