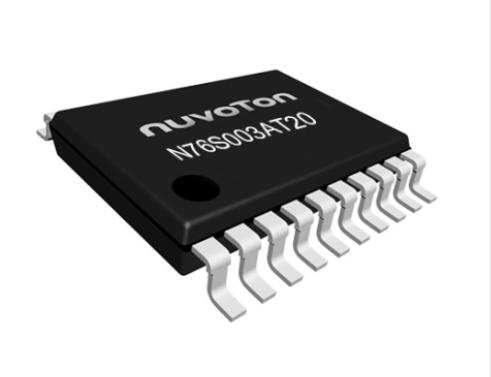

N76S003AT20
N76S003AT20

N76S003AT20

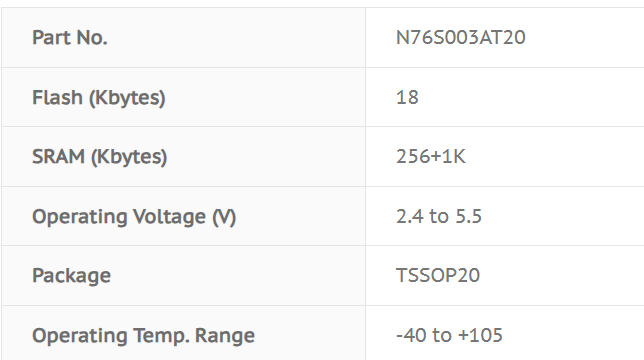

N76S003AT20 is an embedded Flash type 1T 8051-based microcontroller, offers 18 KB Flash ROM, configurable Data Flash and 1 KB SRAM. It supports wide operating voltage of 2.4V to 5.5V , temperature range of - 40 ℃ to 105 ℃ , and high noise immunity of 7 kV ESD and 4 kV EFT.

N76S003AT20 provides up to 18 I/O pins under 20 pin package and rich peripherals including two UARTs, SPI, I²C, 6-ch PWM output, wake-up function, and Brown-out detector. The competitive features include a high precision <2 % deviation 16 MHz Internal RC oscillator, and a high resolution 12-bit 8 channel ADC. N76S003AT20 supports small form factor packages TSSOP20 (4mm x 6.5mm) to make designing easily.


Target Application:
Access Control System, Thermostat, Bluetooth Speaker, Electric Meter, Data Collector, Battery charger, Beauty Equipment, Small Home Appliance, etc.
