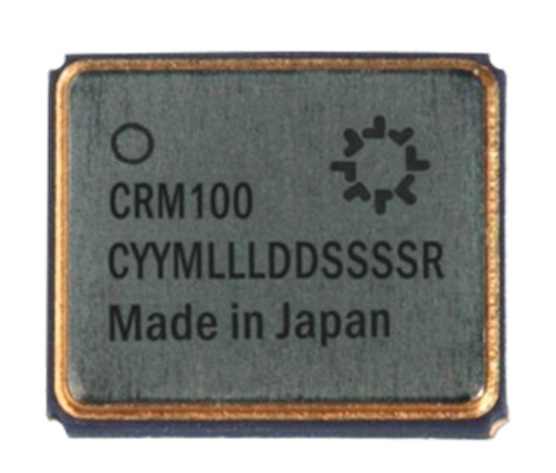

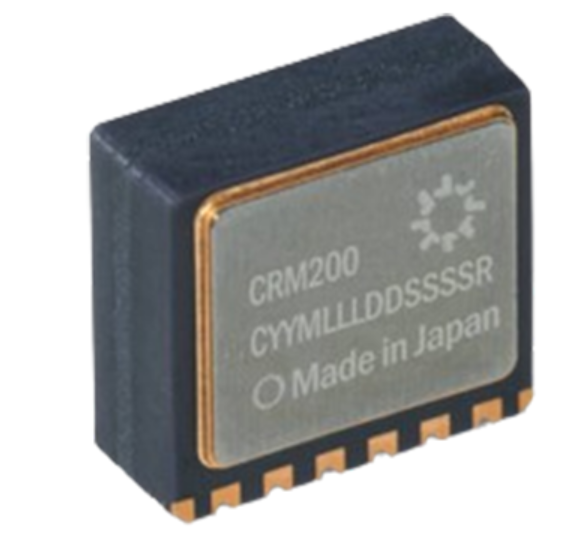

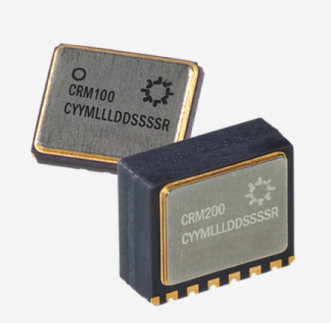

CRM100 | CRM200 Gyroscope

Silicon Sensing's CRM100 and CRM200 are single-axis MEMS angular rate sensors (gyroscopes) capable of measuring angular velocities up to ±1,000°/s with two output modes; an analogue voltage signal linearly proportional to the angular velocity and a digital signal in the SPI protocol. The choice of output mode; analogue or digital, is determined by the user when connecting to the user's host PCBA.

FEATURES
Dimensions (5.7x4.8x1.2mm)
Proven rugged silicon MEMS vibrating ring gyroscope
Low bias instability (12/hour) over short integration periods (<1s) Low angular random wander (0.2°/√hr) In-plane and quadrature sensing options (CRM100 and CRM200)
User selectable dynamic range:75/sec, 150°/sec 300°/sec and 900°/sec (1.000°/sec maximum)Analogue and digital (SPI) output modesUser adjustable bandwidth to 160Hz
3V nominal power supply (2.7-3.6V range) Low power consumption (4mA)
High shock and vibration immunity
Hermetically sealed ceramic LCC surface mount package, temperature and humidity resistant All-in-one temperature sensor with low integration cost
Available design tools and resources RoHS compliant AECQ100 tested

Application Areas
Automotive Vehicle Navigation
Precision GPS vehicle and personal navigation aids
Vehicle yaw, pitch and roll rate sensingTransmission sensingMotion trackingPointing equipmentPrecision agricultureAntenna stabilisation
Industrial and Robotics
