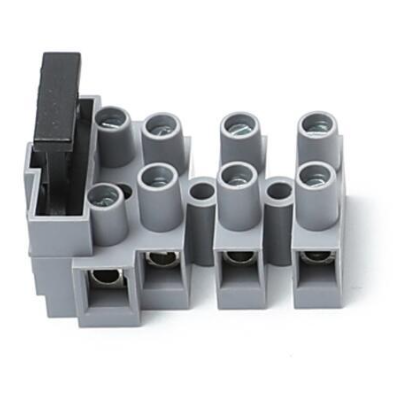

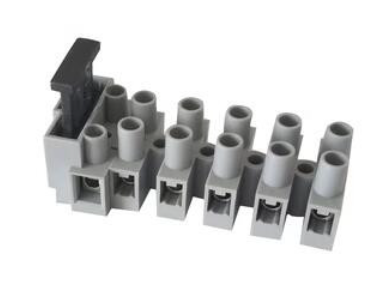

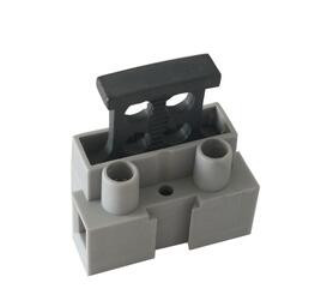

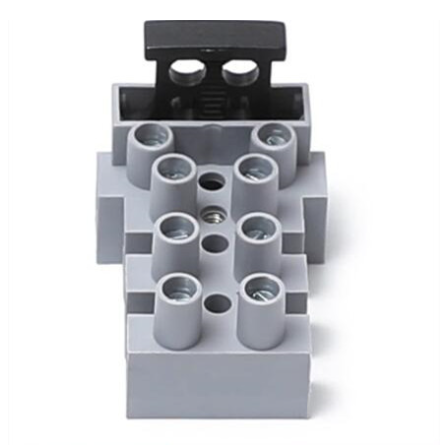

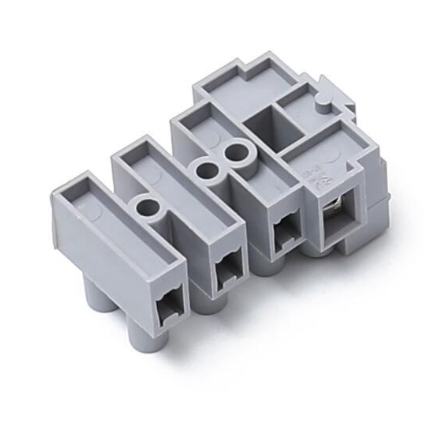

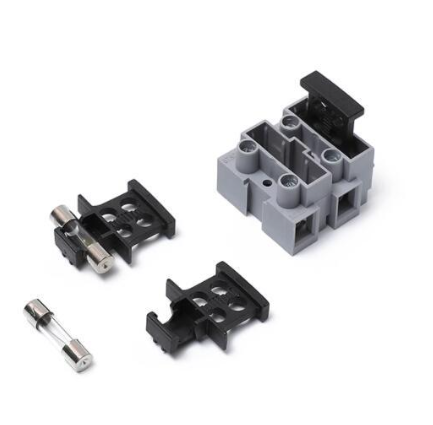

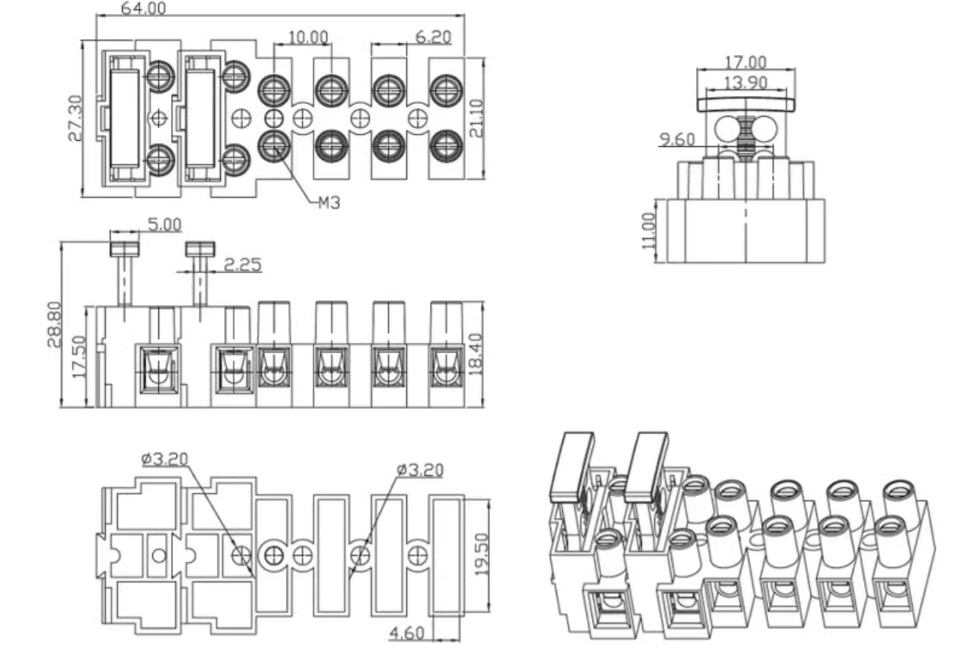

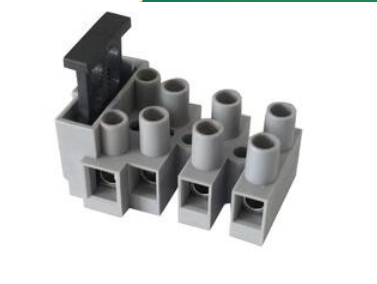

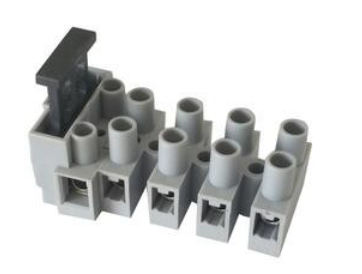

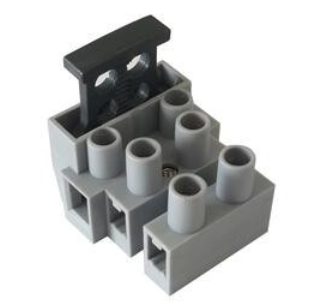

Through Terminal Block ST801/ KF801/DG801 Pitch 10mm Fuse Holder with Protective Tabs

Product Parameter
Model: ST801
Pitch: 10mm

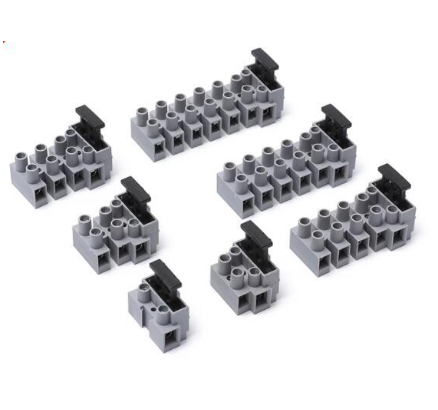

Number of poles: 1-7P

Electrical Performance
Rated voltage: 300V
Rated Current: 20A
Wire diameter: 12-10WG(2.5mm²)
Ambient Temperature: -40°C~+105°C
Stripped wire length: 7-8mm

Material and Plating
Plastic: PA66,UL94V-0
Square: Copper, nickel plated
Screw: M3 steel Zinc plated

Reed: Stainless steel
