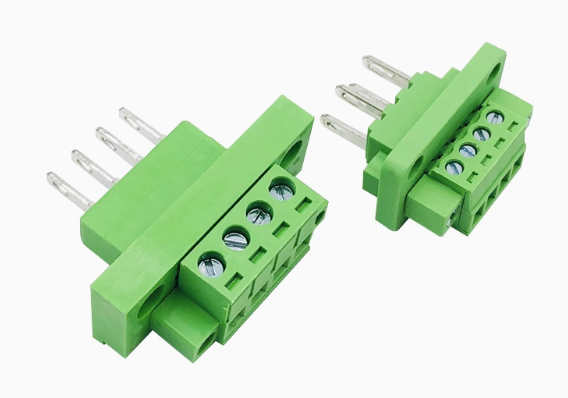

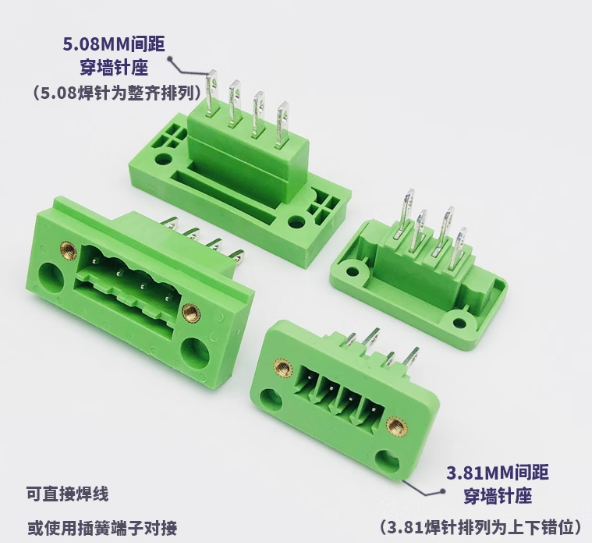

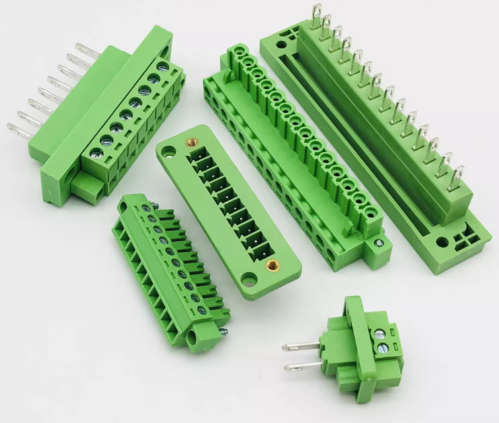

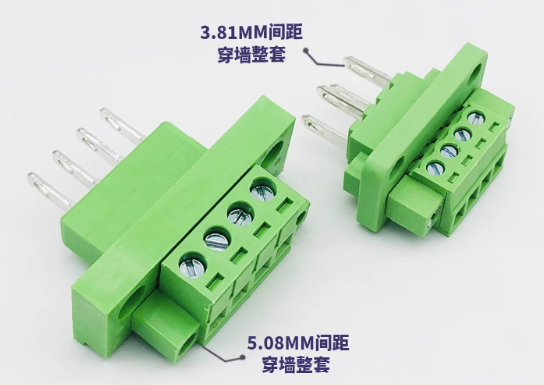

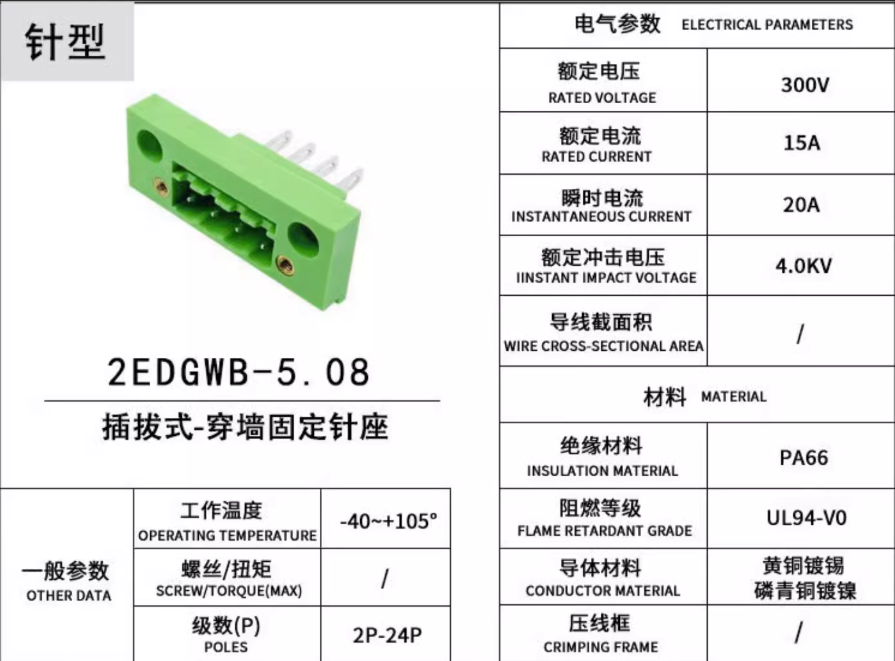

Plug-in through-wall terminal block 2EDGWB-5.08MM/15EDG-3.81MM2P3P-24P green terminal block

Electrical Performance
Rated voltage:300V
Ambient temperature:-40C~+105C
Rated current:8A
Applicable wire diameter:0.1-1.5MM²(28-16AWG)
Instantaneous current:10A
Wiring:Screw lift frame
Rated impact voltage:2KV
Screws: M2 steel, plated CR3 + passivated colour zinc

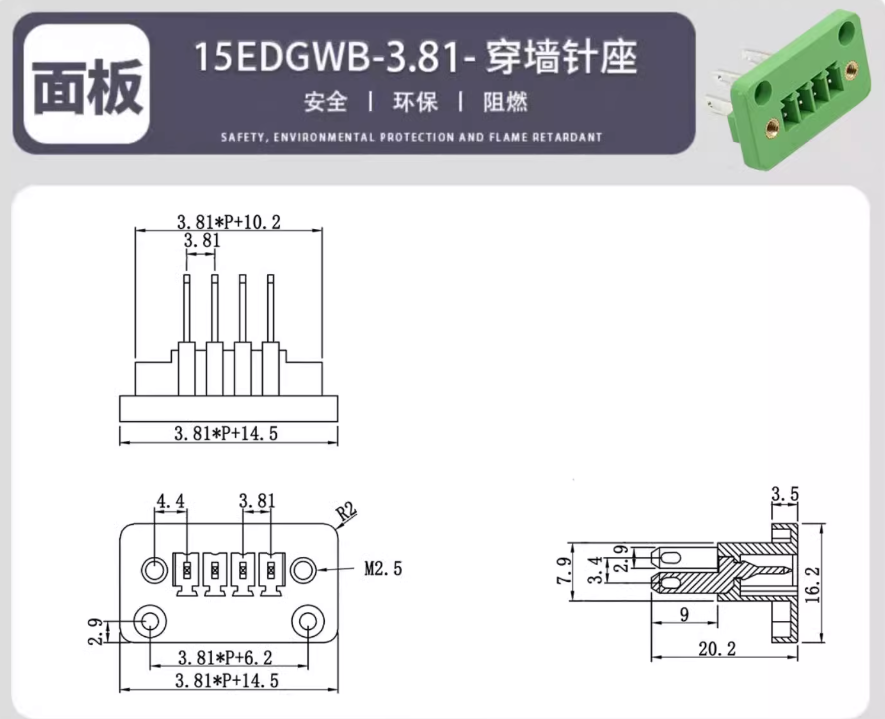

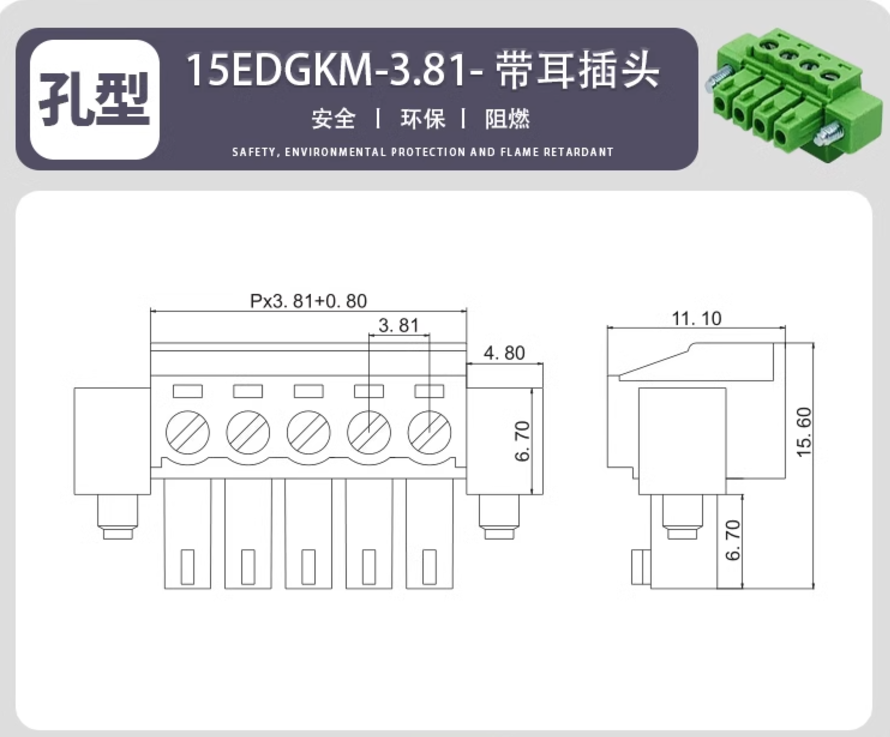

Pitch: 3.81MM
Maximum locking torque: 0.2N.M (1.8LB-IN.)
Flame retardant shell: PA66, UL94V-0
Crimp frame: brass with nickel plating
Number of Positions:2-24P

Contacts: Tin-plated copper

Electrical Performance
Rated voltage:300V
Ambient Temperature:-40°C~+105°C
Rated current:15A
Applicable wire diameter:0.1-2.5MM²(24-12AWG)
Rated current:20A
Wiring method:Screw lift frame
Rated impact voltage:2.5KV
Screws: M2.5, steel, plated CR3 + passivated colour zinc

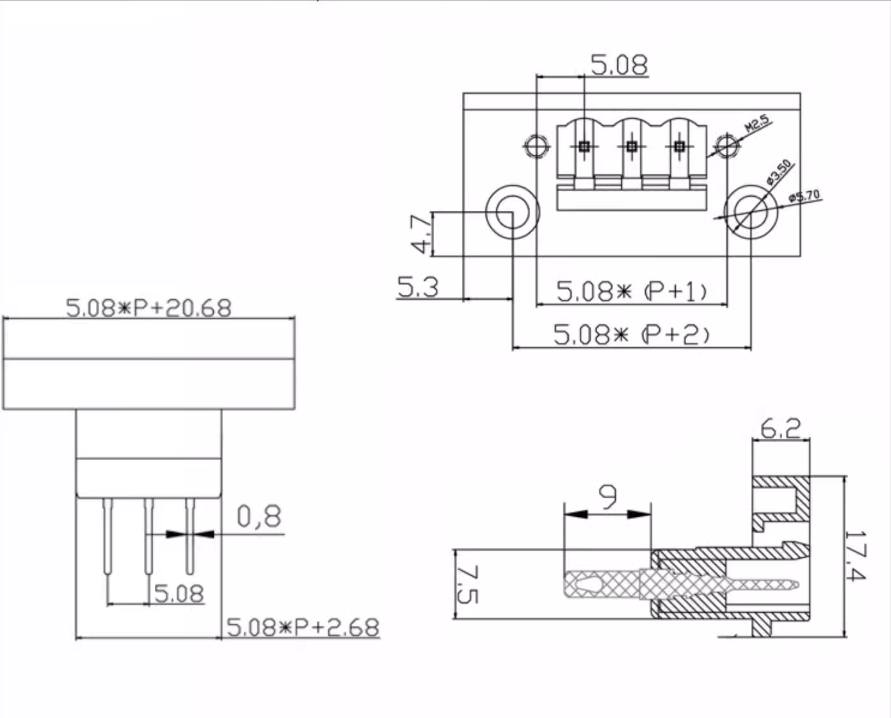

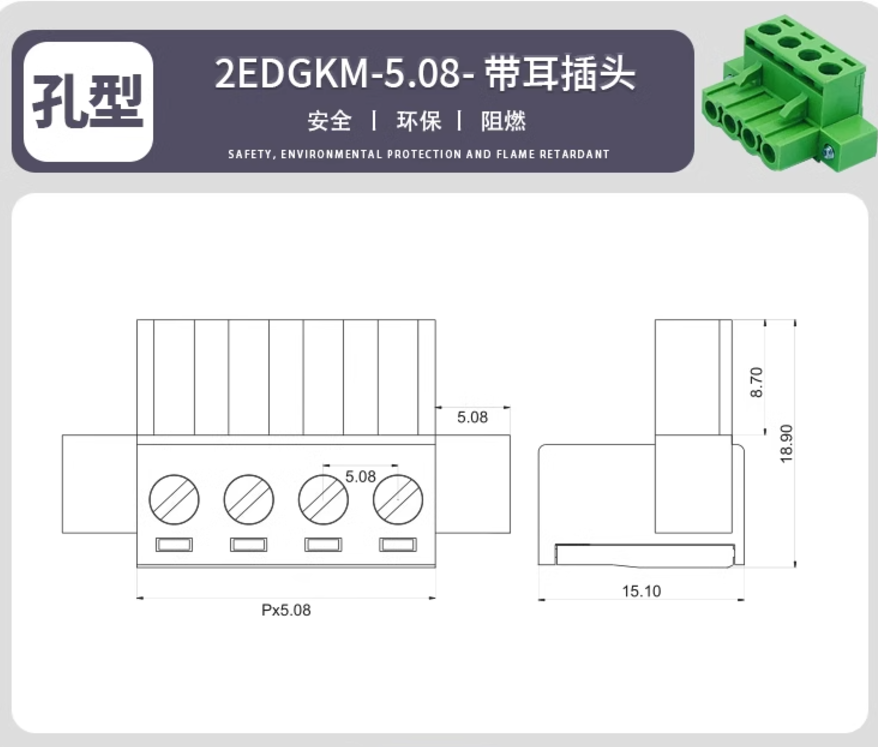

Pitch: 5.08MM
Maximum locking torque:0.4N.M(3.5IB-IN.)
Flame retardant housing: PA66, UL94V-0
Crimp frame: Copper nickel-plated
Number of Positions:2-24P
Contacts:Copper tinned
