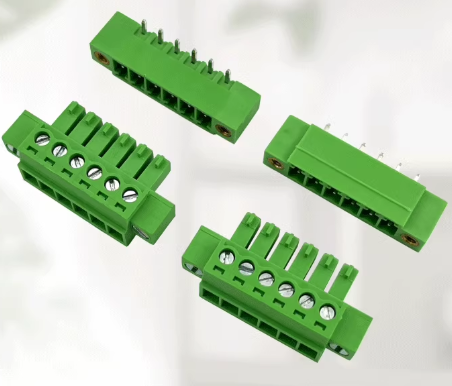

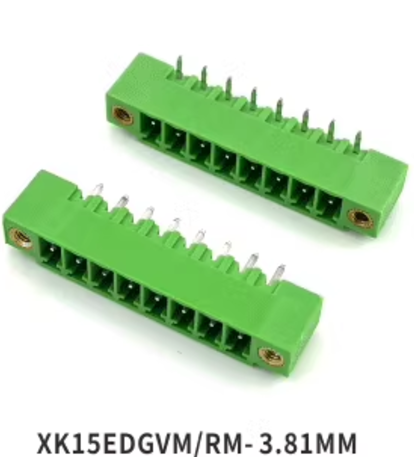

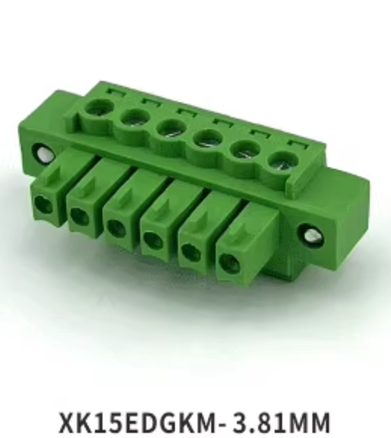

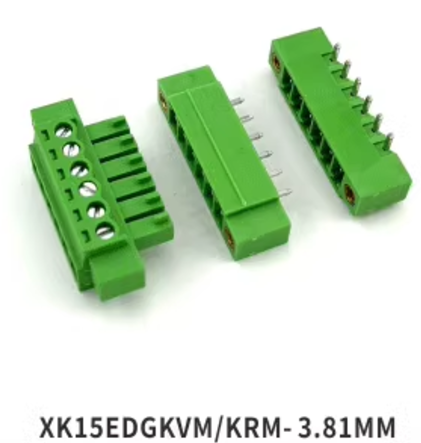

Terminals with ears XK2EDG/15EDGKM-3.81MM male and female plug-in PCB terminals 2P3P-24P
Electrical Performance
Rated voltage:300V
Wire diameter:28-16AWG
Rated current:8A
Wire cross section:1.5MM²
Withstanding voltage:1600V/1Min
Rated impact voltage:2.5KV
Mechanical properties
Ambient temperature:-40°C~+105°C
Stripping Length:7-8MM
Screw/Torque:M2/0.2N.M

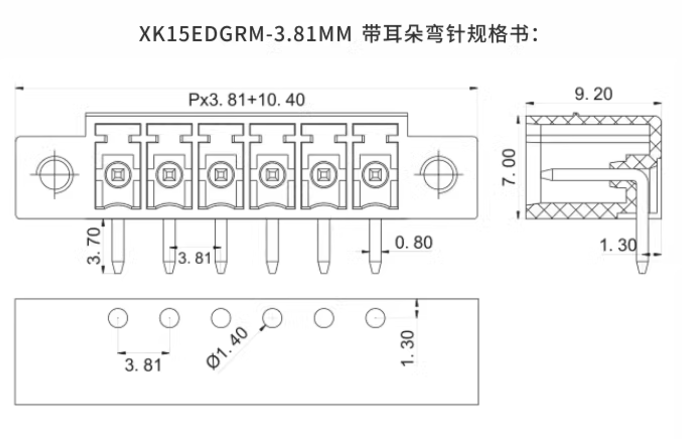

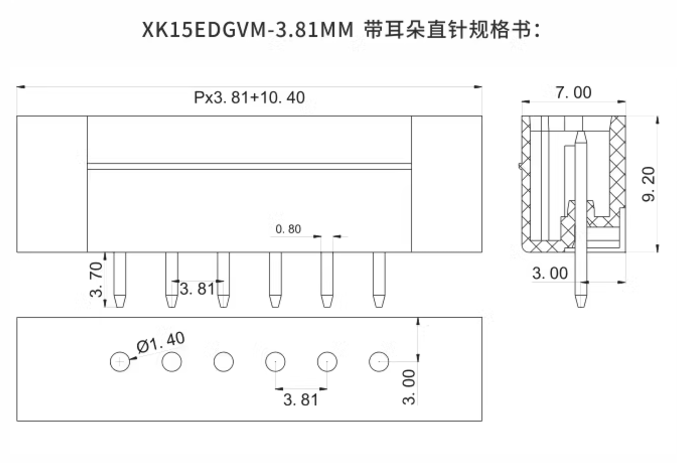

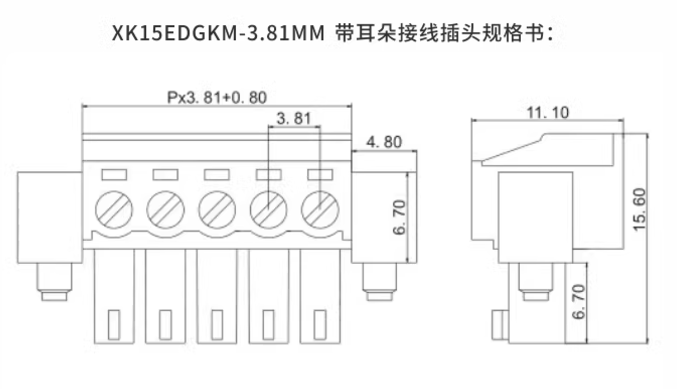

Dimension
Pitch:3.81mm
Grade:2-24P
Material & Plating
Plastic: PA66.UL94V-0
Clip: Phosphor Bronze, Nickel Plated
Square: Brass, Nickel Plated
Screw: M2, steel, zinc plated
Pin holder:Brass,Tin plated
