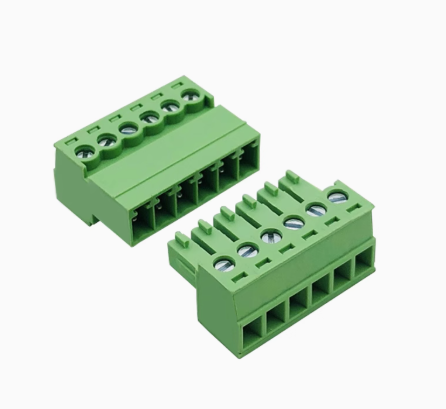

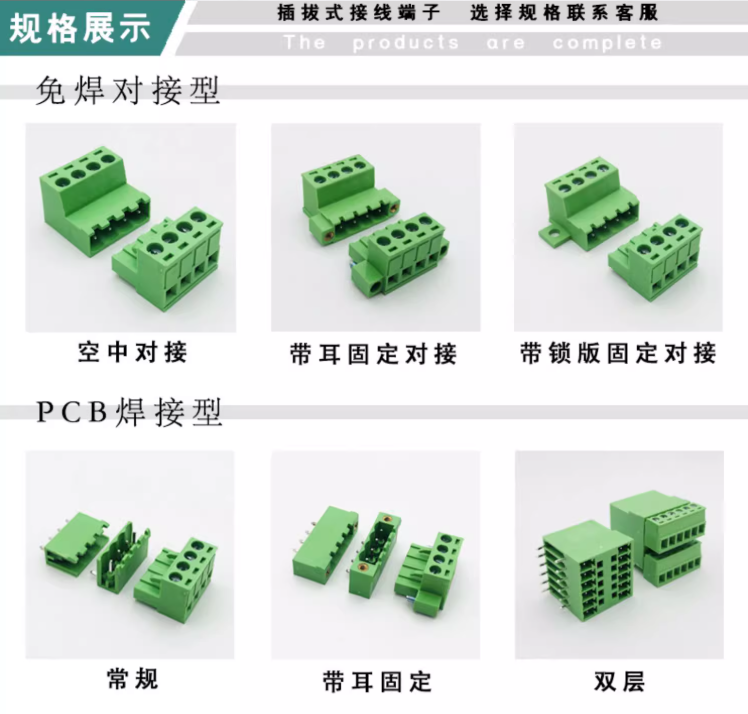

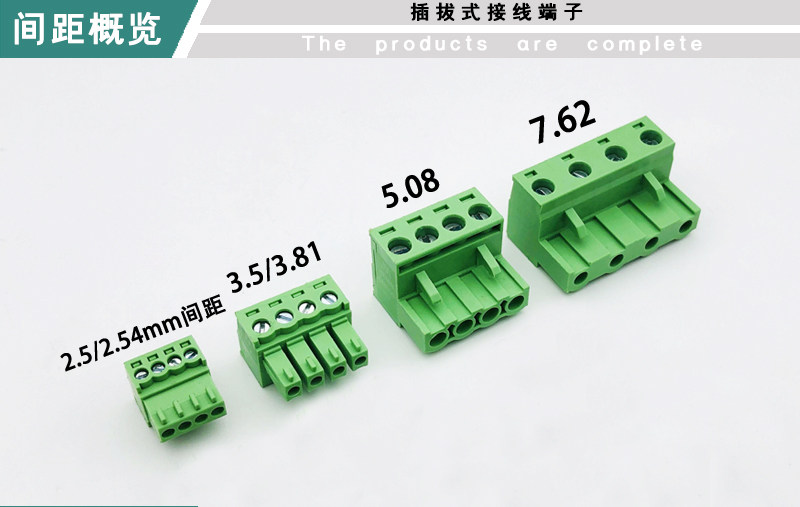

Solderless butt 15EDGRK-3.81, 3.5mm air plug-in male and female terminal block connector spacing

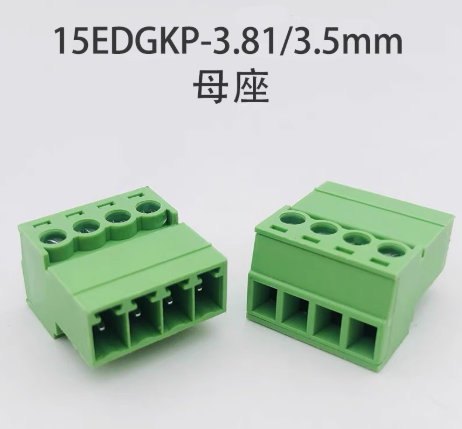

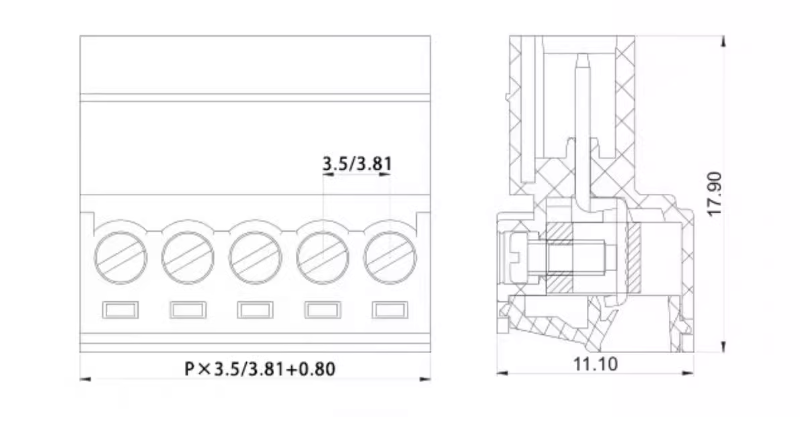

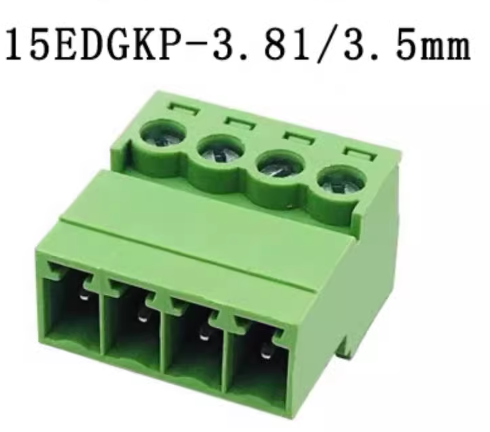

Wiring busbar 15EDGKP-3.81/3.5mm
Rated voltage:300V
Rated current:8A
Instantaneous current:10A
Applicable wire diameter:0.2-1.5mm

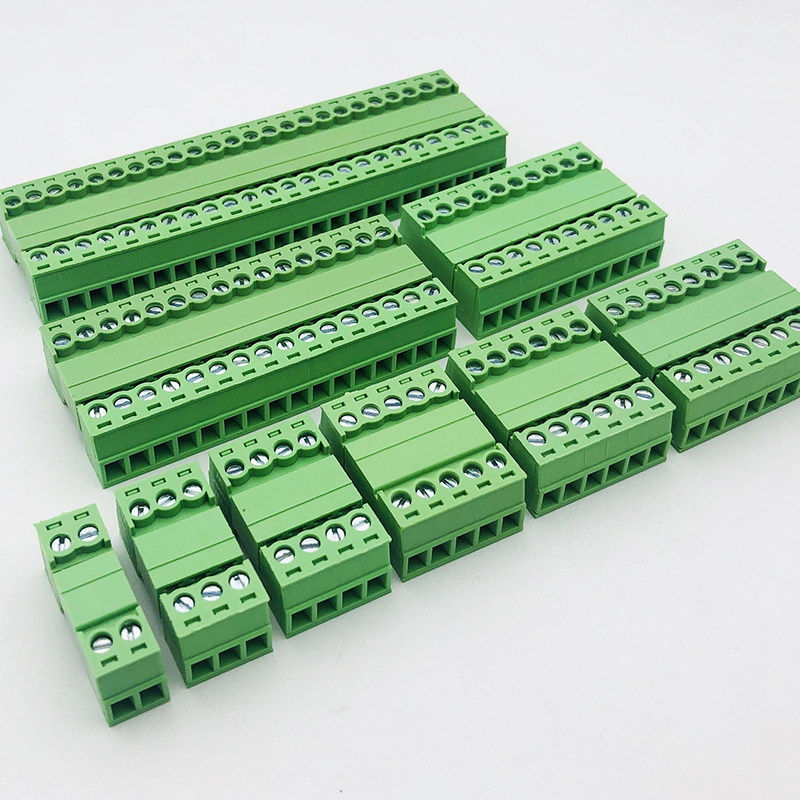

Square digit(P):2-24P
Ambient Temperature:-40℃~+105
Plastic: PA66, UL94-V0
Screw: Steel plated with blue and white zinc

Square: Copper nickel plated

Contacts:Copper plated with tin

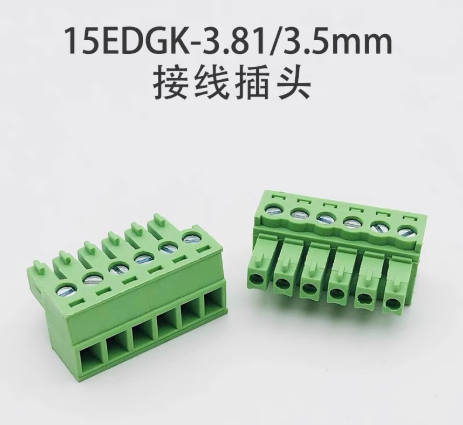

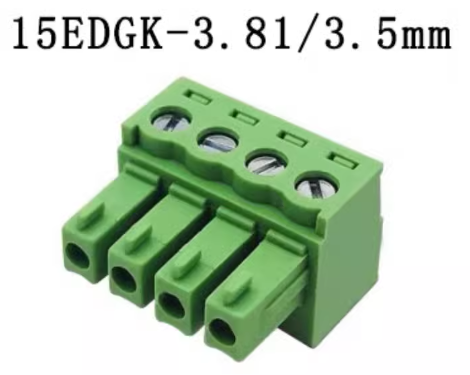

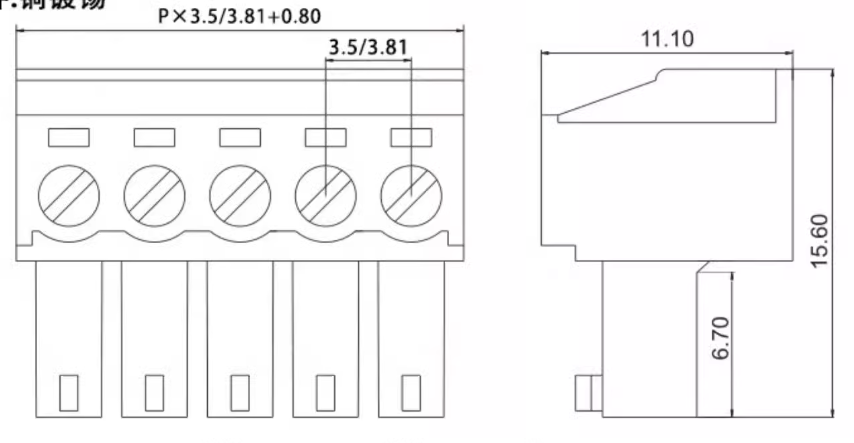

Wiring Plug 15EDGK-3.81/3.5mm
Rated voltage:300V
Rated current:8A
Instantaneous current:10A
Applicable wire diameter:0.2-1.5mm
Square digit(P):2-24P
Ambient Temperature:-40℃~+105
Plastic: PA66, UL94-V0
Screws: Steel plated with blue and white zinc
Square: Copper nickel plated
Contacts:Copper plated with tin
