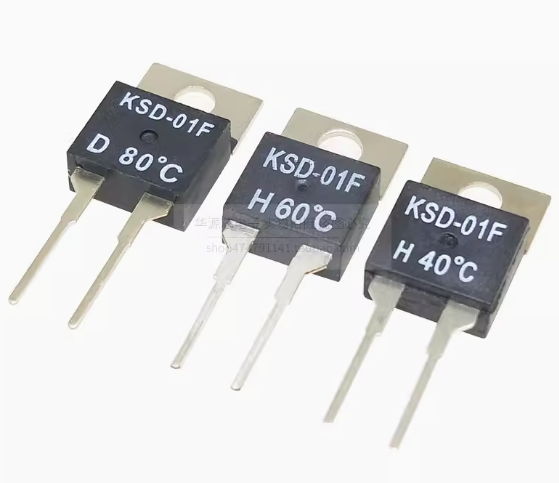

KSD-01F Temperature control switch JUC-31F 0 degrees-150 degrees Normally open H Normally closed D TO-220 temperature relay

Technical Parameters:
Contact load: 220VAC 1A or 24VDC 3A
Overall dimensions (total length × width × thickness): 29.7 × 10.2 × 4.7mm
Temperature range: 0℃-130℃ (one specification per 5℃)
Contact type: Normally closed (-D) or Normally open (-H)
Package: TO-220 metal plate
Contact resistance: ≤ 50mΩ
Insulation value: ≥100MΩ (500VDC)
Dielectric strength: 1500V/DC, 60Hz
Standard tolerance: ± 5℃
Operating ambient temperature: -55℃- 160℃ (short-term maximum temperature: 260℃ for 10 seconds)

Weight ≤ 2g

Working Principle:

KSD-01F temperature control switch using TO-220 package form, jumping, single-pole / single-throw contact point of 100% conduction structure, when the external temperature is too high, passed to the corrected bimetal will be quickly acted on, so that cut off or connect the circuit (normally closed or normally open two kinds of), when the temperature drops to the reset temperature, the bimetal is quickly reset, repeat the work in order to ensure that the product temperature protection of the safety.

Product use:

Suitable for space-saving PC boards. Typical applications include alarm or shutdown systems for overheating circuits; computers and computer peripherals, electrical equipment.
