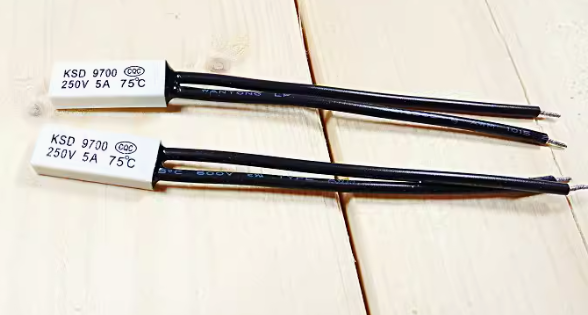

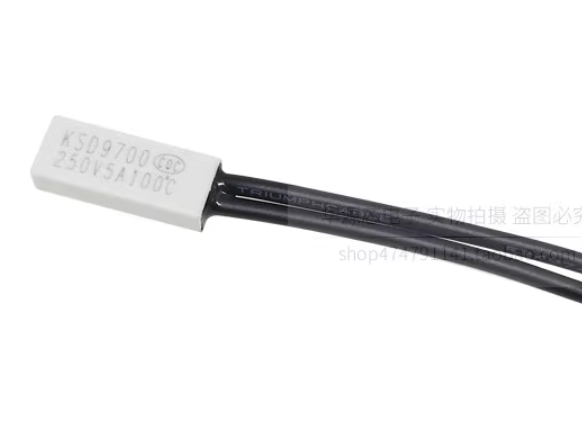

KSD9700 Temperature Control Switch Temperature Switch Thermal Protector 5A Plastic Normally Open/Normally Closed 50 Degree - 100 Degree

The KSD9700 series is a kind of thermostat which adopt the bimetal disc as the temperature sensing element. The bimetal disc is in free state and the contacts are closed when the electrical appliance is working in normal condition. When the ambient temperature raises to the preset operating temperature, the contacts open as the bimetal disc deforms to jump when being heated, then the circuit is cut off to control the temperature .Then the contacts will close automatically to cut on the circuit when the electrical appliance is cooled down to the reset temperature. This product is widely used in home appliance’s motor and electrical equipment, such as air conditioner motor, transformer, thermal appliances, etc.

FOB Price: US $0.13/ Piece | Get Latest Price

Min.Order qty 2000 Piece/Pieces Small Orders Negotiable

Supply Ability: 10000000 Piece/Pieces per Month Adjustable for Urgent Orders

Port: Shenzhen

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
