4 pins light touch button micro switch 12*12*4.3/5/6/7.3/8/9/10/12mm button direct insert vertical
4 pins light touch button micro switch 12*12*4.3/5/6/7.3/8/9/10/12mm button direct insert vertical4 pins light touch button micro switch 12*12*4.3/5/6/7.3/8/9/10/12mm button direct insert vertical4 pins light touch button micro switch 12*12*4.3/5/6/7.3/8/9/10/12mm button direct insert vertical

4 pins light touch button micro switch 12*12*4.3/5/6/7.3/8/9/10/12mm button direct insert vertical

Product Details:
Temperature range:-25+85 degrees Celsius
Rated load:DC12V 50mA
Contact resistance:50ΩMAX
Insulation resistance:100MΩMIN
Withstanding voltage:AC250V(50HZ)/MIN
Action force:2.5±0.5N
Electrical life: 100000 times

Packing:500pcs

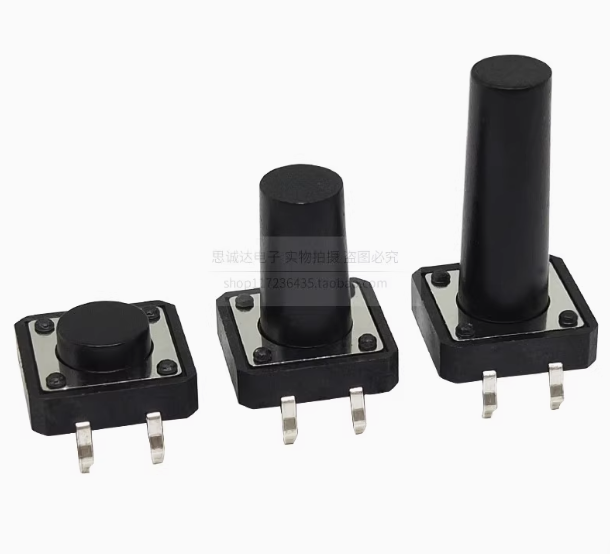

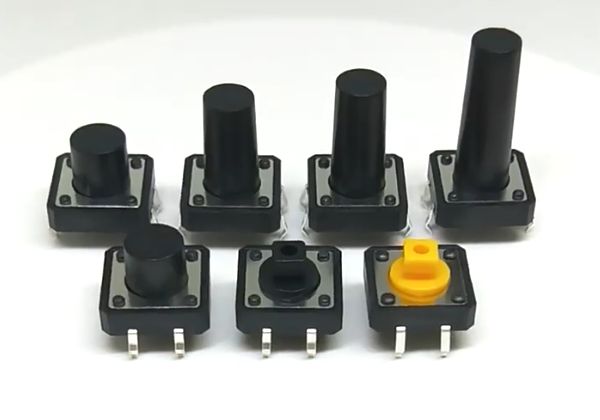

Various heights available

Contact Supplier
Previous:Supply AC110V PIR Sensor Infrared IR Switch Module Human Body Motion Human body sensor Light switch
Next:Computer desktop mobile switch button external desktop external boot extension cable boot key one key boot
Product Categories
Related Products
Description

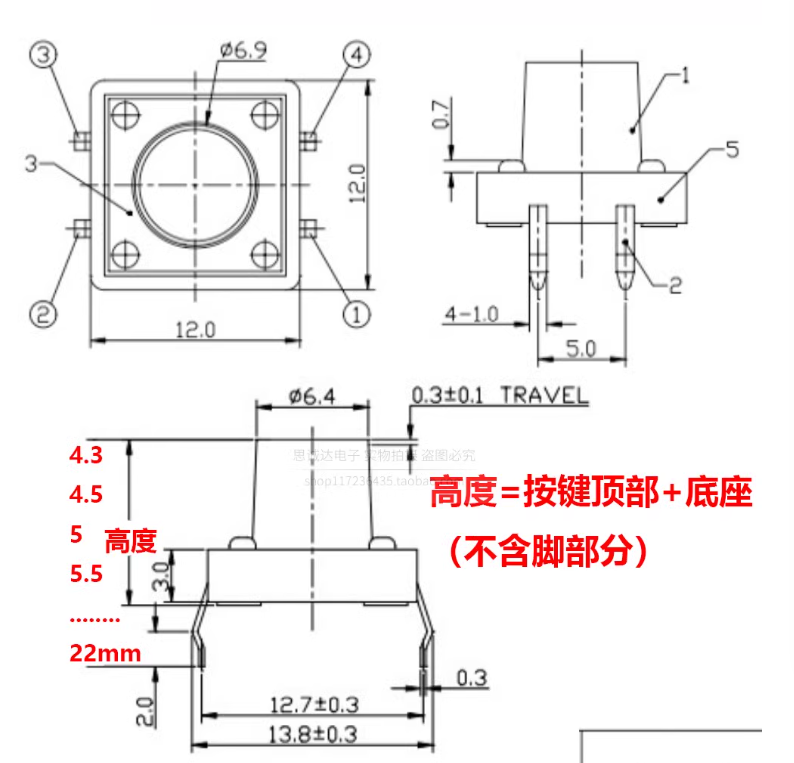

Height = top of key + base (without foot section)
