NuMaker-IoT-MA35D0-A1
NuMaker-IoT-MA35D0-A1NuMaker-IoT-MA35D0-A1NuMaker-IoT-MA35D0-A1

NuMaker-IoT-MA35D0-A1

NuMaker-IoT-MA35D0-A1

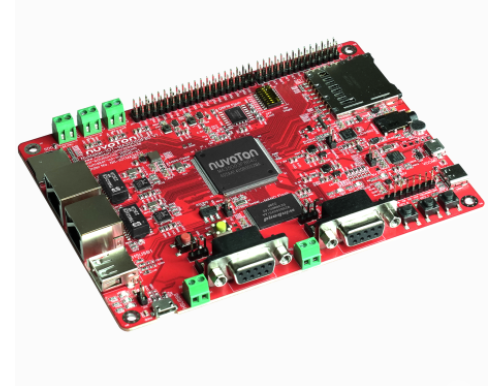

The NuMaker-IoT-MA35D0-A1 is an evaluation board (EVB) for Nuvoton NuMicro MA35D0 series microprocessors. The EVB has rich peripherals such as 2 sets of 10/100 megabit Ethernet, USB2.0 high-speed host and device, 1 set of SD2.0 in Micro SD slot, 1 set of SD3.0 in SD slot, 3 sets of CAN FD, SPI, I²C, UART, and 2 sets of RS-485/RS-232 serial communication ports for users to facilitate the evaluation in edge device application, such as industrial control, home appliances, new energy applications or your creative applications.

Product Categories
Related Products
Description
NuMaker-IoT-MA35D0-A1 Features

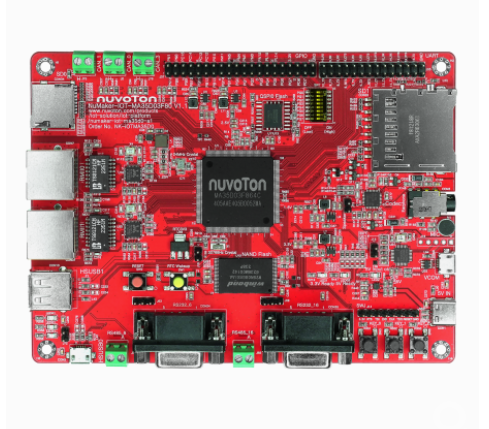

NuMaker-IoT-MA35D03F80 Board
• Main Chip: MA35D03F864C (LQFP216) MCP package with DDR3L (256 MB), which can run up to 650 MHz
• Power:
- 5V Powered by USB Type-C
- Battery header for RTC power
• Debug:
- UART0 debug port: USB Virtual COM (VCOM) port
- Debug port: SWJ (JTAG + SWD) connector
• Memory Devices
- An on-board Quad SPI NAND Flash device (512 MB)
- An on-board NAND Flash device (1 GB)
- MicroSD memory card (SD0, supporting SD2.0)
- Standard-SD memory card (SD1, supporting SD3.0)

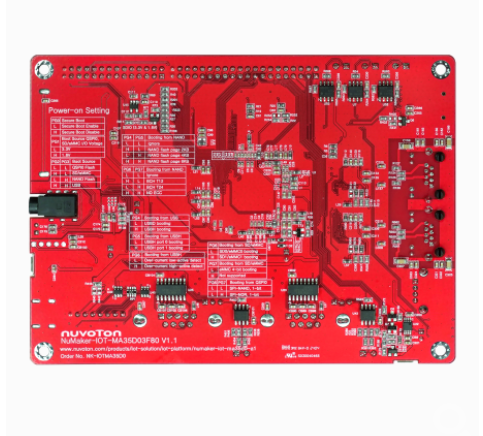

• One power-on setting DIP-Switch for evaluation booting source selection
• Two sets of 10/100 Megabit Ethernet port: Two Megabit Ethernet (RMII) PHY devices, two transformers and two RJ45 port connectors
• Two sets of high-speed USB ports: One Host/Device port and one Host port
• One audio codec with microphone input and speaker output
• Two sets of RS232/RS485 transceiver and DB9/header connector
• Three sets of CAN FD transceiver and header connector
• Three user key buttons
• Three user LEDs

One 8-channel ADC header connector

IoT Function Demonstration Architecture
