V751DB40-Littelfuse

Description

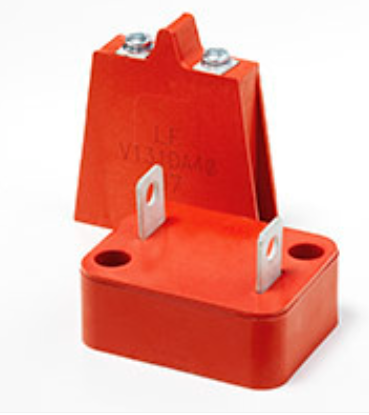

The DA and DB Series transient surge suppressors are heavy-duty industrial Metal-Oxide Varistors (MOVs) designed to provide surge protection for motor controls and power supplies used in oil drilling, mining, and transportation equipment.

These UL recognized varistors have identical ratings and specifications but differ in case construction to provide flexibility in equipment designs.

DA Series devices feature rigid terminals to ensure secure wire contacts. Both the DA and DB Series feature improved creep and strike distance capability to minimize breakdown along the package surface design that provides complete electrical isolation of the disc subassembly.

See DA/DB Series Device Ratings and Specifications table for part number and brand information.

Features

• High energy absorption capability WTM up to 1050J

• Wide operating voltage range VM(AC)RMS 130V to 750V

• Screw terminals (DA Series),quick connect push-on connectors (DB Series)

• Case design provides complete electrical isolation of disc subassembly

• 40mm diameter disc

• No derating up to 85ºC ambient

• RoHS compliant
