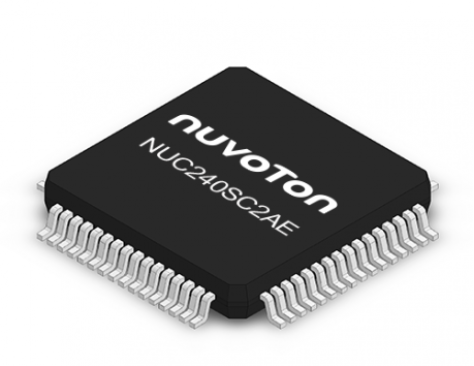

NUC240SC2AE
The NUC240 operates at 2.5V ~ 5.5V and -40℃ ~ 105℃, and provides 22.1184 MHz high precision internal oscillator (±1% accuracy at 25℃, 5V; full range ±3%) , an USB2.0 full speed device and two Bosch CANs 2.0A/B, rich peripherals (e.g. RTC, ISO-7816-3, CRC, I²S) , rich connectivity interfaces and high immunity (8KV ESD, 4KV EFT) . Package types include LQFP48, LQFP64 and LQFP100.
Target Application:
Automotive, Consumer, Security/Alarm, Temperature Sensor, Communication System, etc.
Key Features:
Core
- Cortex™-M0 processor
- Max frequency of 72 MHz
- Operating voltage: 2.5V to 5.5V
- Temperature range: -40℃ ~ 105℃
Memory
- 32 KB of flash memory
- 8 KB of SRAM
- 4 KB of Data Flash
- ISP (In-System Programming)
- ICP (In-Circuit Programming)
- IAP (In-Application Programming)
ADC
- Up to 7 channels
- 12-bit resolution
- Up to 800 kSPS
- ±1℃ accurate Temperature Sensor
PWM
- Up to 4-channel PWM or 2 complementary paired PWM outputs
- Period/duty trigger ADC function
Connectivity
- Up to 2 Bosch CANs 2.0A/B
- Up to 2 SPIs (up to 36 MHz)
- Up to 2 I²Cs (up to 400 kHz)
- Up to 3+2 UARTs (up to 1 Mbps)
- Up to 2 ISO-7816-3 interfaces for security application
- 16/8 bits EBI interface
Clock Control
- 4 to 24 MHz external crystal oscillator
- 22.1184 MHz internal RC oscillator (±1% accuracy at 25℃, 5V)
