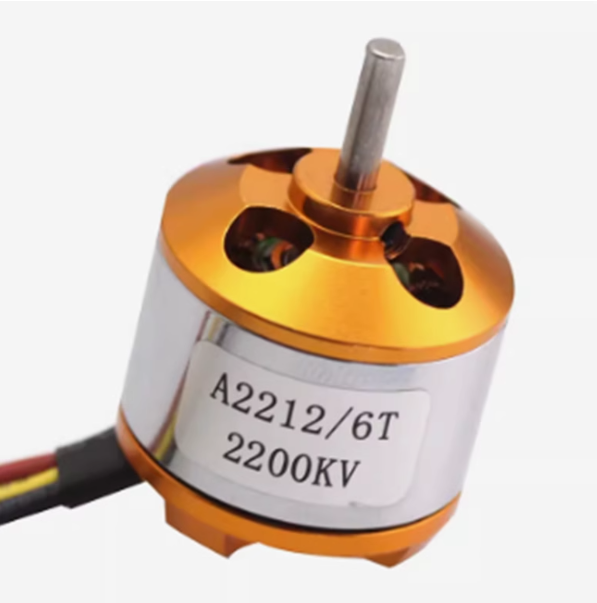

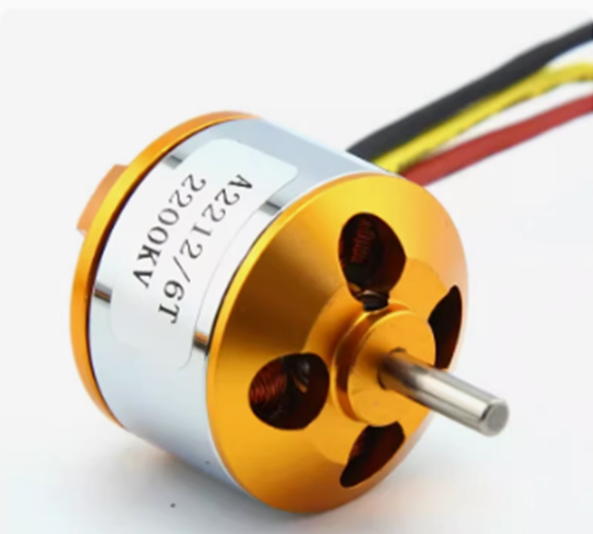

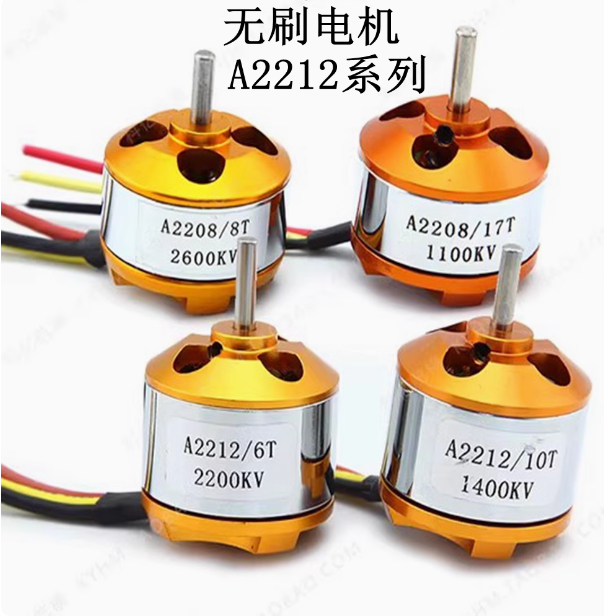

A2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2450KV 2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner Motor
A2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2450KV 2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner MotorA2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2450KV 2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner MotorA2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2450KV 2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner MotorA2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2450KV 2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner MotorA2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2450KV 2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner Motor

A2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2450KV 2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner Motor

A2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2450KV 2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner Motor
1.High Quality Materials: with long life Japanese NMB ball bearings, efficient Japanese Kawasaki stator steel and oxygen free pure comer wires, CNC machined aluminum case.
2.High Temperature Resistance: N40UH magnets and silicone wire leads are able to withstand high temperatures.
3.Brushless Motor: light weight, 930KV high RPM and powerful brushless motor bring you a stimulated flight.
4.Patented balance techniques
5.Suit for RC Fixed Wing Airplane

Description:
1.This professional brushless motor comes with high quality.
2.Powerful motor with light weight is sure to bring you stimulated flight.

3.It is a good choice for RC drone fans.


Specifications:
Model: A2212 930/1000/1200/1400/1600/1800/2200/2450/2700KV Motor

Product Categories
Related Products
Description

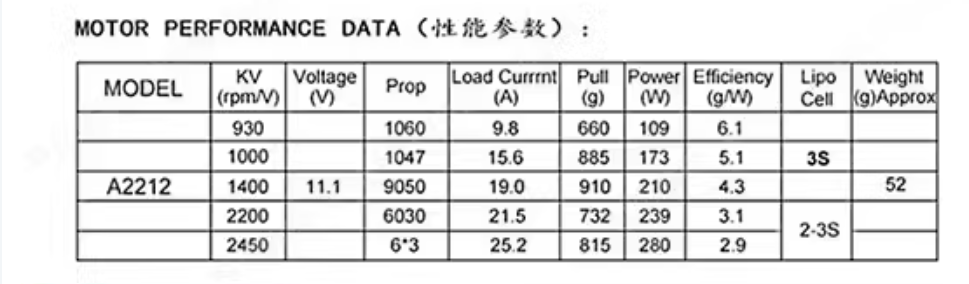

A2212 Series Parameters
Number of cells:2-3 Li-Poly/5-7 Ni-Mh/Ni-Cd
Operating Efficiency:>75%
Operating current:14~25A(>72%)
No load current/10 V:1.5 A
Instantaneous Maximum Current:25 A/60 s

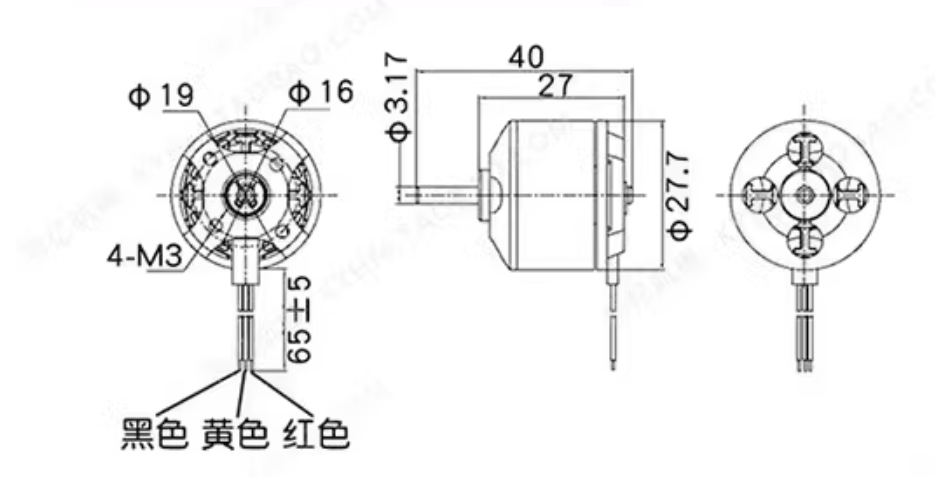

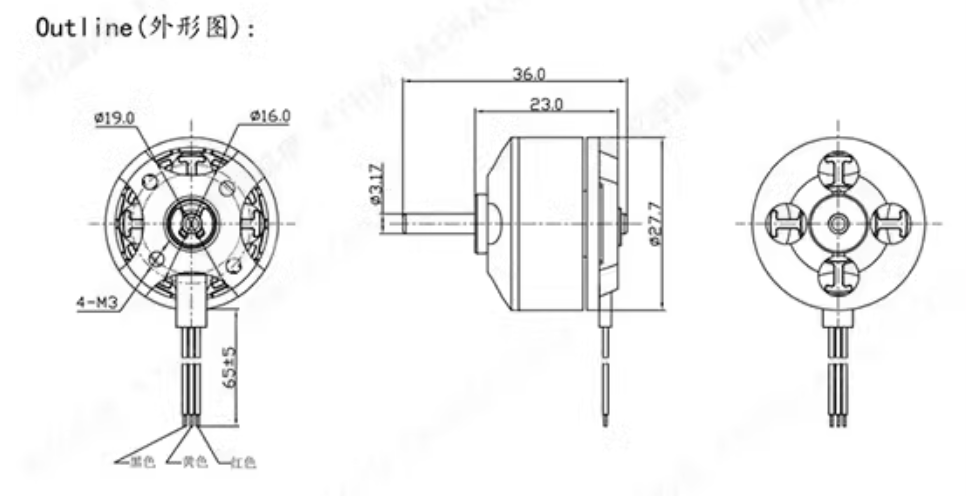

Size:27.5x30mm
Output shaft diameter: 3.17 mm

Weight:47 g

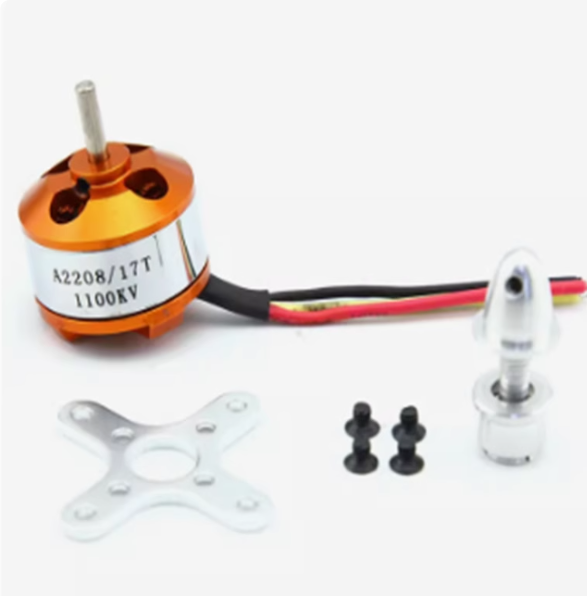

A2208 Series Parameters
KV value 1100KV/1400KV/1800KV/2600KV
Dimension 23*27.7mm
Output shaft diameter 3.17mm
Weight 36g
Application: aeromodelling fixed-wing aircraft, four or six-axis flying machine and other models.
