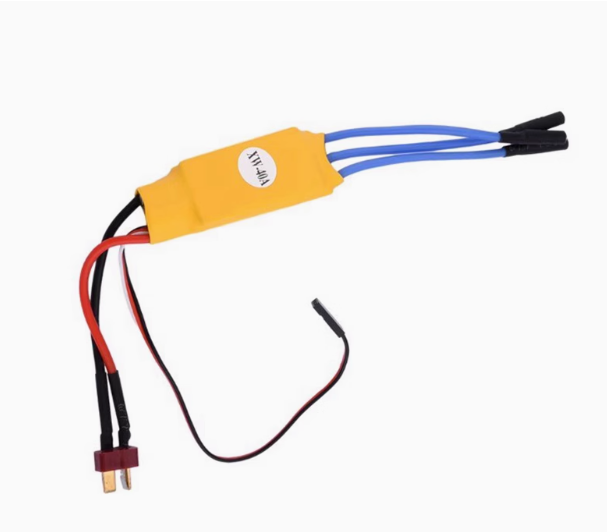

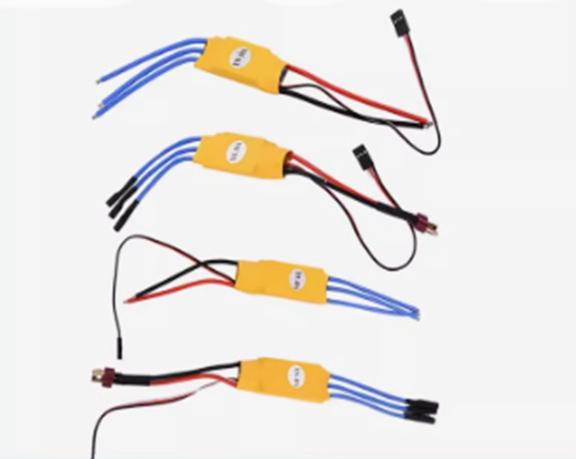

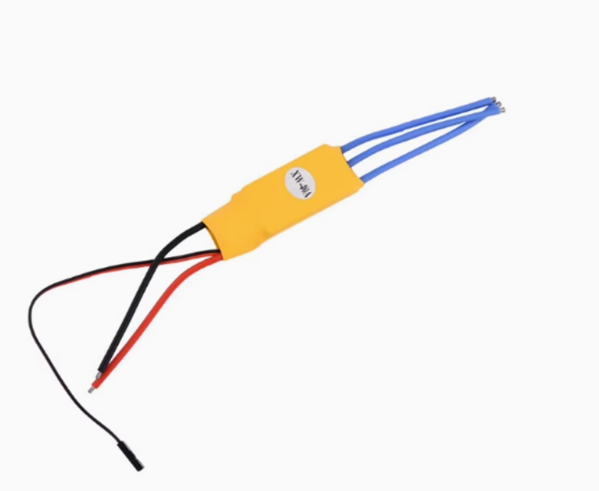

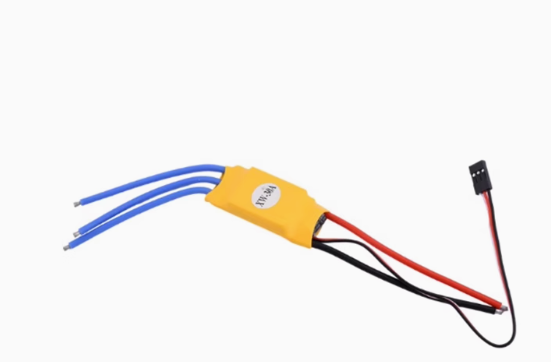

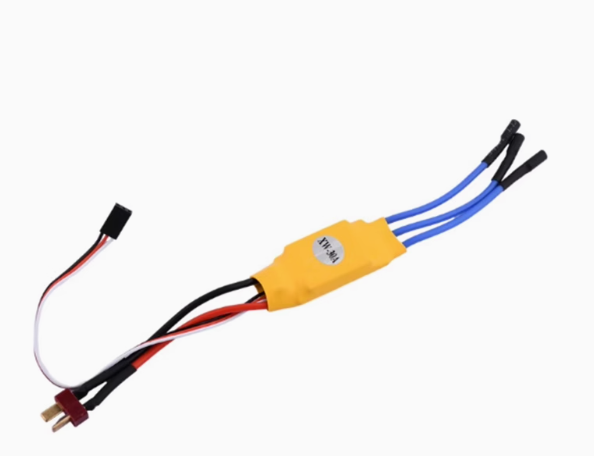

30A 40A 60A 80A 125A 200A Brushless ESC Motor Speed Controller Electronic Governor For RC Fixed Wing Multi-axis Aircraft
Product Parameters:
Extreme use:Continuous current 30A, instantaneous 35A, 40A for 10 seconds. Voltage range:4V-16VColour:yellow
Number of batteries:4-12NIMH2-3LIPO(4LIPO is not allowed to use BEC output)
BEC output:Continuous 2A,(Instantaneous 3A)2LIP04-5 mini servo3LIP0 3-4 mini servo
Extreme use:Continuous current 30A, instantaneous 35A, 40A for 10 seconds. Voltage range:4V-16VColour:yellow
Number of batteries:4-12NIMH2-3LIPO(4LIPO is not allowed to use BEC output)
BEC output:Continuous 2A,(Instantaneous 3A)2LIP04-5 mini servo3LIP0 3-4 mini servo
Protection functions: automatic selection of 2-3LIPO, respectively, the protection voltage is 6V/9V; automatic selection of NIMH, each section of the protection voltage is 0.8V; safe start, the throttle position is not right to prohibit the start; temperature protection, 110 degrees surface temperature shutdown; out of control protection, no signal 1 second after the shutdown.
Performance Description:
RPM limit, up to 300,000 rpm for 2-pole internal, 50,000 rpm for 12-pole external, and 42,000 rpm for 14-pole external.8KHz PWM control, using RPM control curve. Automatic throttle adaptation, suitable for more remote control devices. Use BEC, MCU separate power supply, work more stable.
