433MHZ mini wireless remote control power-on transmitter module RF radio frequency lithium battery remote switch 3V12V24V

Receiver Module Description
Operating voltage:DC 3.7V~24V
Larger load:2A(Larger load power 40W)Static current:3.6mA~5.5mA(6.08mA)
Operating frequency: 433MHz (315MHz can be customised in bulk from 4K) Receiving sensitivity: ≥ -107dBm (-90dBm)
Output Voltage:Input DC3.7V~DC24VOutput DC3.7V~DC24VModulation Mode:ASK(Super Output)

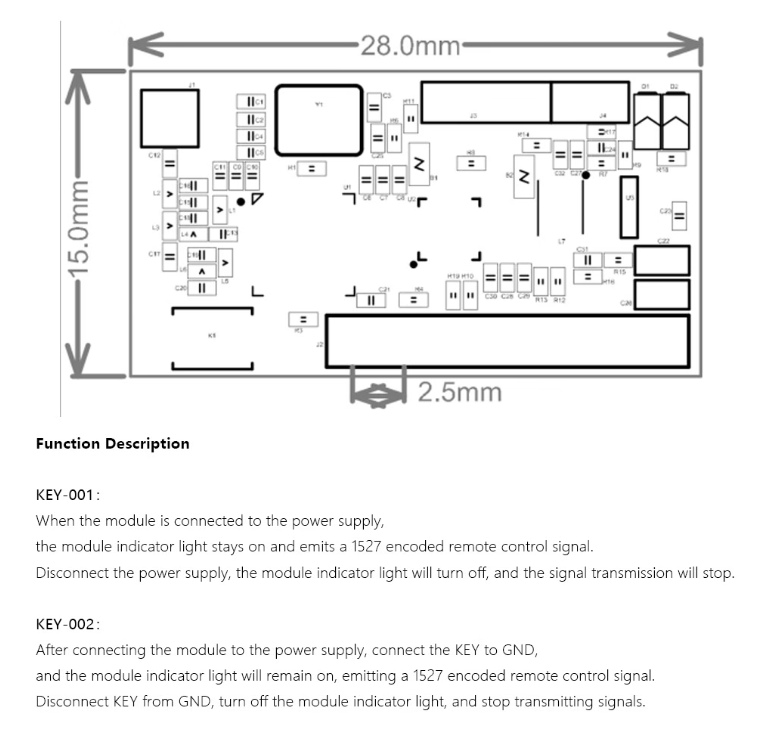

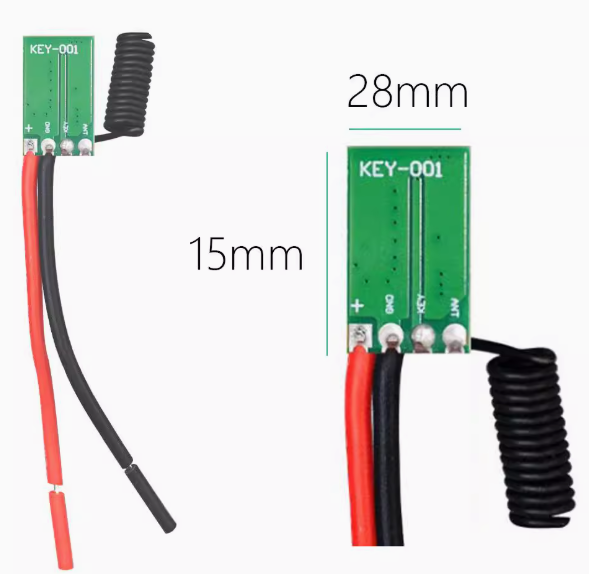

Appearance size: 25mm x 16mm x 5mm (LXWXH) mini size support code format: 1527 learning code

Input Voltage = Input Voltage (Negative control via MOS tube)

Storage remote control number: function mode as a storage unit, a module can only store 5 (pairs) functions, for example: the module can remember 5 ‘Tap key’, or remember 5 pairs of ‘interlock key’, or remember 5 ’ self-locking keys’, or can be a mixture of 5 functions, such as remembering two tap keys, two self-locking keys, and one pair of interlocking keys.
Working Mode:Tap, Self-lock, Inter-lock
Learning mode:key learning

Operating Temperature:-20~80 Degree
