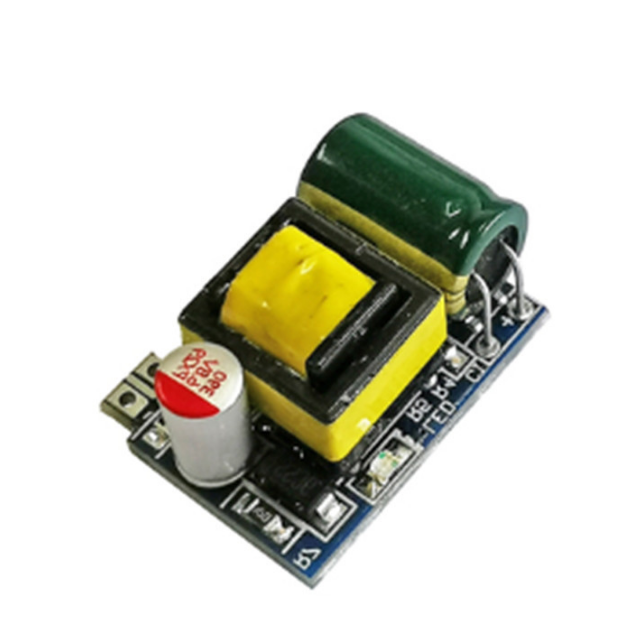

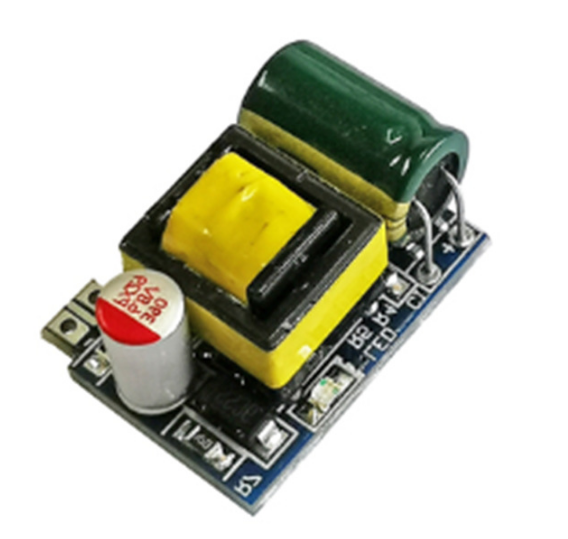

5V 700mA Power Supply Module 3.5W AC-DC Isolation Switch Power Module 220V to 5V Buck Converter Board Module
5V 700mA Power Supply Module 3.5W AC-DC Isolation Switch Power Module 220V to 5V Buck Converter Board Module5V 700mA Power Supply Module 3.5W AC-DC Isolation Switch Power Module 220V to 5V Buck Converter Board Module5V 700mA Power Supply Module 3.5W AC-DC Isolation Switch Power Module 220V to 5V Buck Converter Board Module5V 700mA Power Supply Module 3.5W AC-DC Isolation Switch Power Module 220V to 5V Buck Converter Board Module

5V 700mA Power Supply Module 3.5W AC-DC Isolation Switch Power Module 220V to 5V Buck Converter Board Module

  • This module is an AC-DC/220V-5V isolation switch power module
  • With overvoltage, overcurrent, over temperature,and short circuit protection, wide voltage input and fixed output
  • High-performance board, optimized design, suitable for the control board and microcontroller board, and power supply system is very stable and reliable
  • Double-sided board, small size, easy to install
  • There is a green light power output indicator light, which is convenient and intuitive to see the working status of the module

Product Categories
Related Products
Description

Specifications

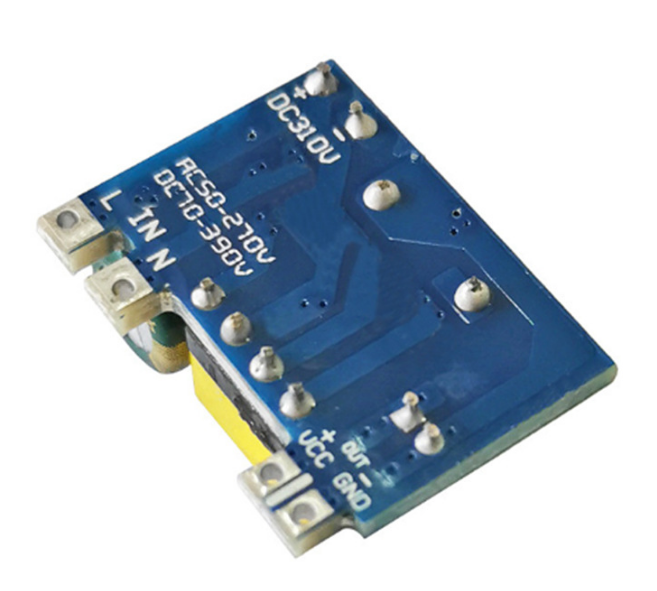

220 to 5V700mA (3.5W),Input voltage range: AC50V-277V DC70V-390V

No load power:<0.05W,Full load power:<4W

Output characteristics: Multiple modules with the same voltage can be used in parallel to meet the needs of small space and high current,Output voltage: 5V ±0.15V no-load and full load, reduced by 0.1V under light load, rebounded under heavy load, a ripple of 60mV under 50% load

Output current: 5V0mA-700mA, entering constant-current working mode at full load

Test resistance: 40 ohms for 5V (4.9V)

Output indicator light: green light,Output power: 3.5W, efficiency is about 80%,Output protection: overvoltage, overcurrent, over temperature, over power, short circuit protection

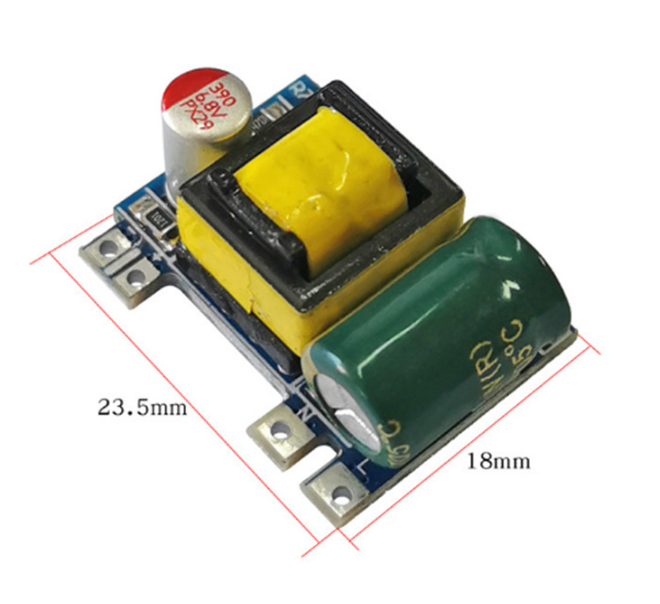

Product size: 23.497mm * 18.15mm * 13.5mm/0.93 * 0.71 * 0.53inch

Working temperature: -20℃ to 70℃, with output filtering and high-quality solid-state electricity
