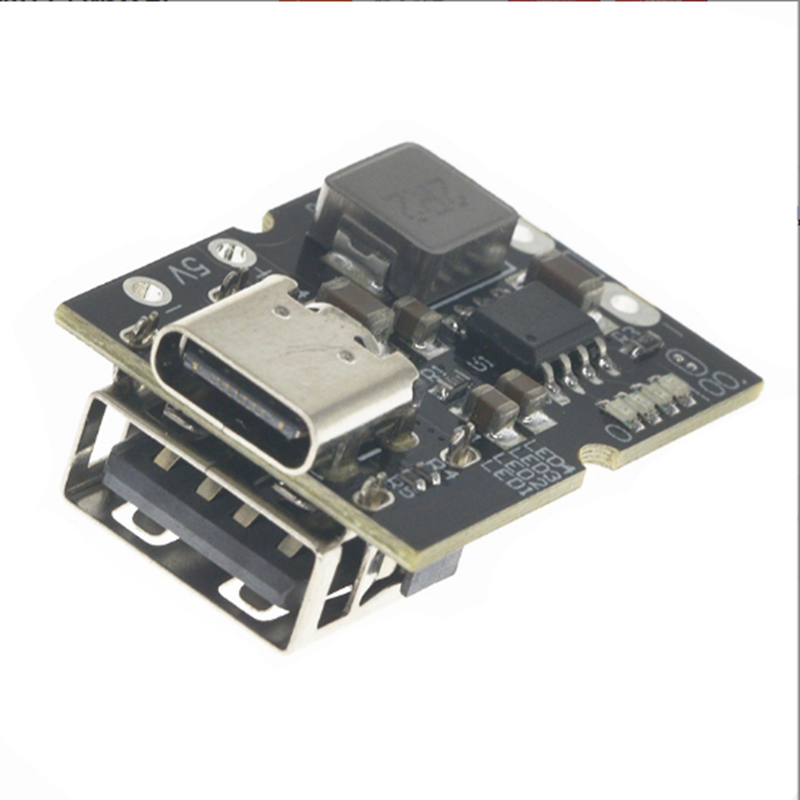

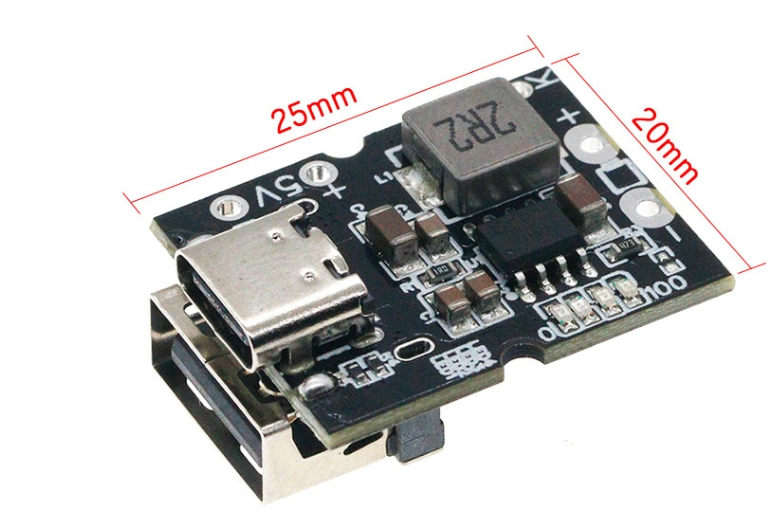

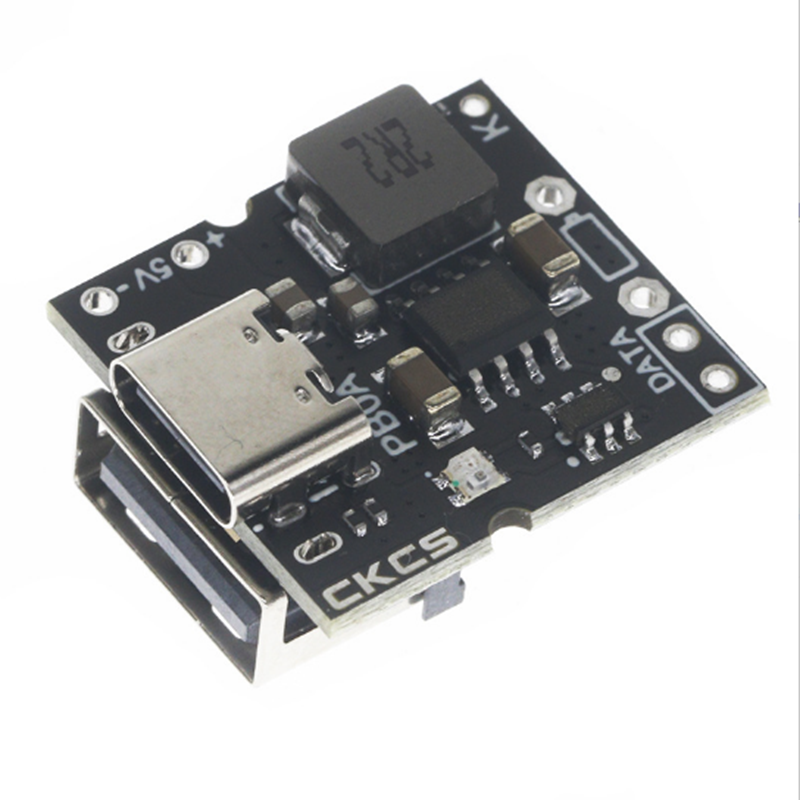

Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display USB For DIY Charger
5V2A:
5V 3.1A
Skype:sales@astra-ic.com Tel:86-13147036431 E-mail:sales@astra-ic.com
5V2A:
5V 3.1A
Charge and discharge status indication

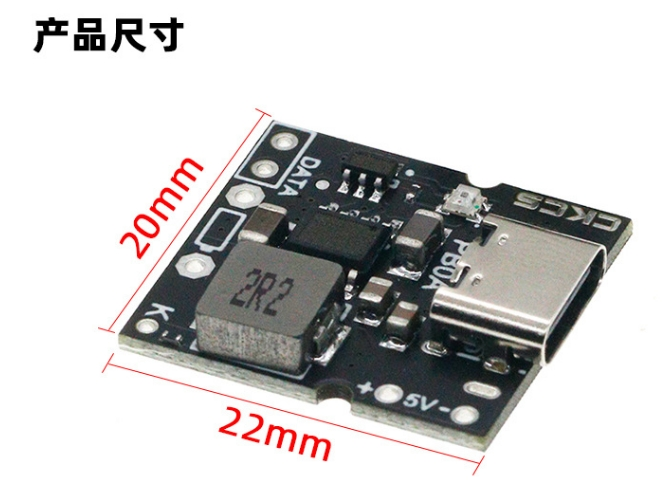

TYPE-C USB Black Board
Specification:
Input voltage range: 5 ~ 5.5V
Charging cut-off voltage: (4.2v/4.35v) ± 0.5%
Charging current: 2.4a ± 5%
Boost output voltage: 5V ~ 5.15v (line loss compensation)
Boost output voltage ripple: 100mV
Boost output current: 2A
Boost conversion efficiency: 92.5% (3.6V input, 5v2a output)
Static current at battery end: < 30uA
Function introduction
When the load current is less than 50mA continuously, the output will be turned off.
It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.
When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.
When the battery voltage drops below 4.1V, the charging cycle starts again.
When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA.

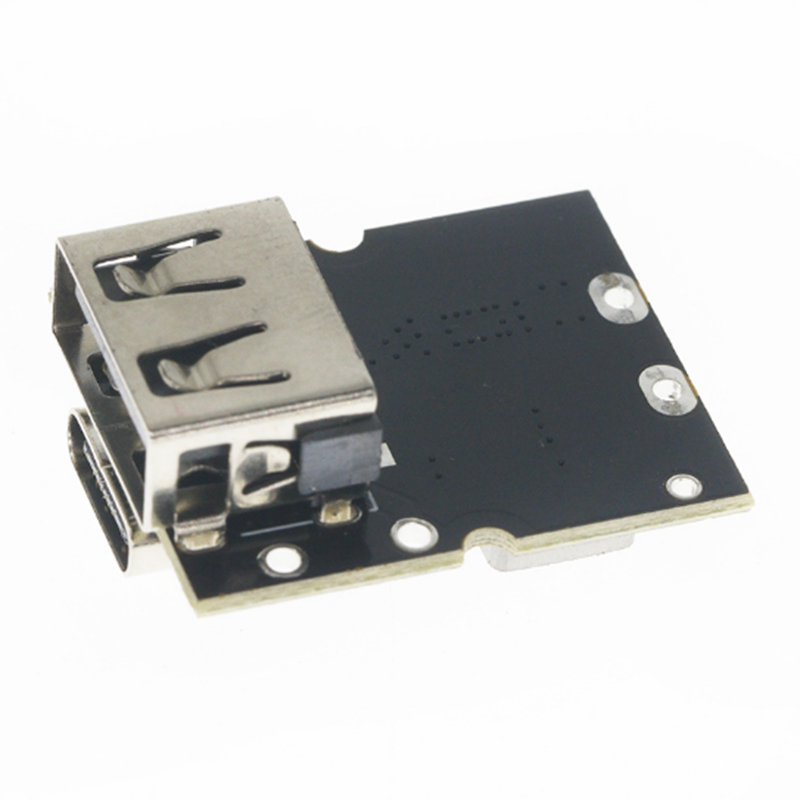

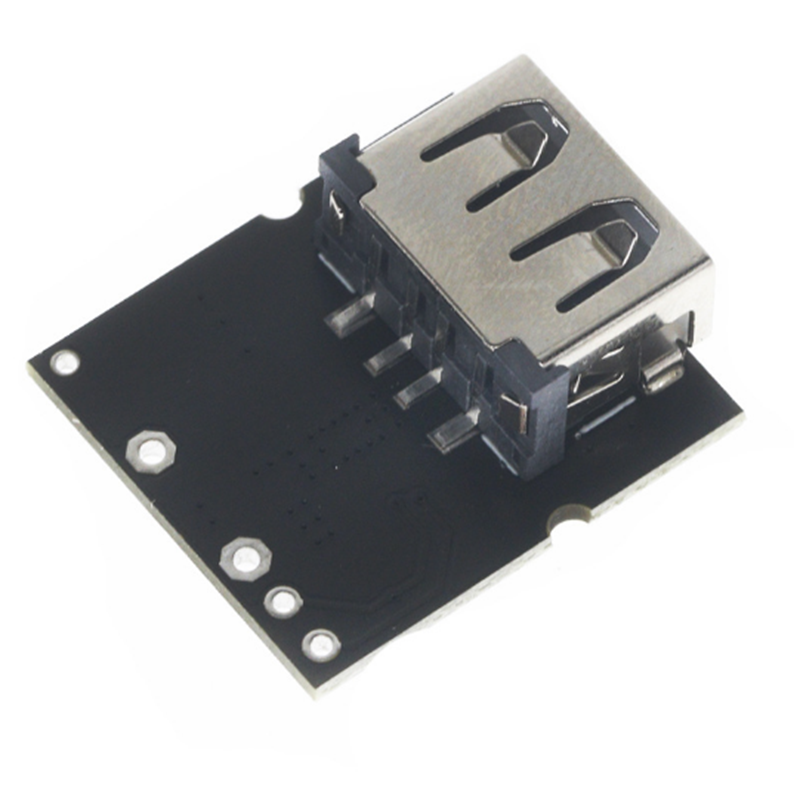

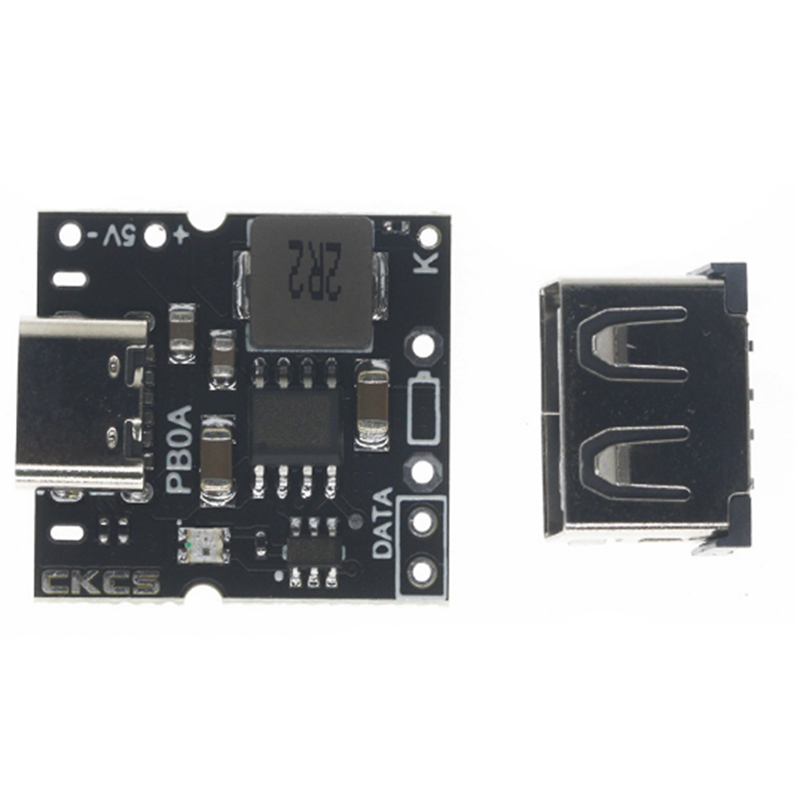

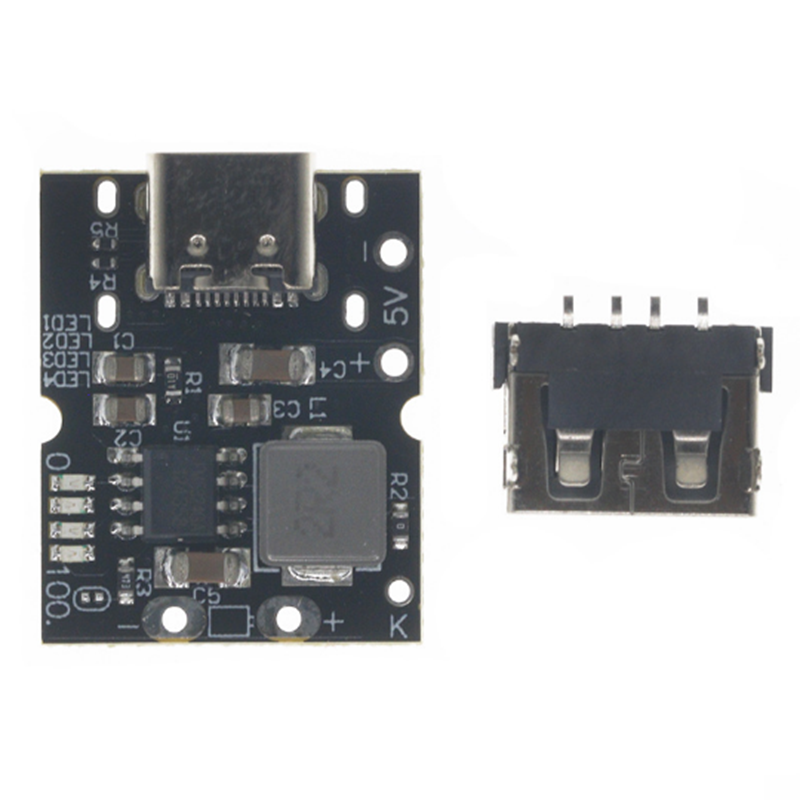

The usb-a base weldingposition is provided on the back of the product, which can be installed manually.
It supports discharging while charging.
