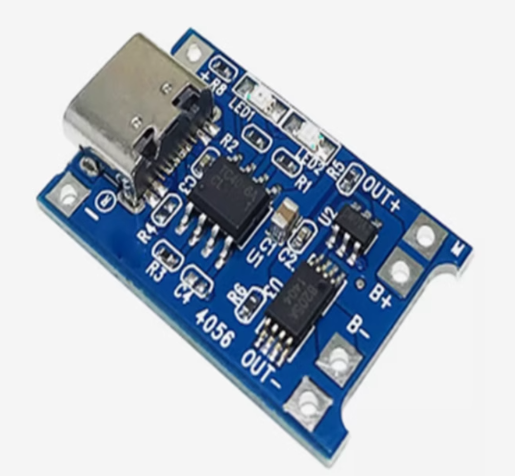

TP4056 1A Lithium Battery Charging Board Module
TP4056 1A Lithium Battery Charging Board Module

TP4056 1A Lithium Battery Charging Board Module

FOB Price: US$0.11/ Piece | Get Latest Price

Min.Order qty 2000 Piece/Pieces Small Orders Negotiable

Supply Ability: 10000000 Piece/Pieces per Month Adjustable for Urgent Orders

Port: Shenzhen

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Supplier
Previous:KSD225AC8
Next:HC-12 SI4463 /SI4438 433Mhz Wifi Wireless Serial Port Module HC12 1KM 1000m 433MHz Receiving and Transmitting Board PCB
Product Categories
Related Products
Description

TP4056 1A Lithium Battery Charging Board Module

Description:

Inputs with MICRO USB female, can be directly input to do with the phone charger rechargeable lithium battery. And still retains the input voltage wiring pads, can be very convenient DIY.

Note: The charge should disconnect the load OUT terminal on the positive and negative can not be wrong, please according to specifications, otherwise it will damage directly.

Note: The first time you access the battery, it may no voltage between the output OUT + and OUT-, then access 5V voltage charge your energy can activate the protection circuit, and the battery from the B+ B-, then draw a line on the short open also need recharged to activate the protection circuit. Note that the charger must be able to output 1A or more to do when using a mobile phone charger input, or may not charge.
+ MICRO USB female and next - pads for the power input, access 5V. B + positive then the lithium battery, B- then negative lithium Batteries. OUT + and OUT- connected to the load, such as positive and negative electrodes connected mobile booster plate or other load.
Connect the battery to the B + B-, inserted into the USB female mobile phone charger, the red light is being charged, the green light to full.

Features:
Input voltage: 5V
Charging cut-off voltage: 4.2V ± 1%
Maximum charge current: 1000mA
Battery over-discharge protection voltage: 2.5V
Battery overcurrent protection current: 3A

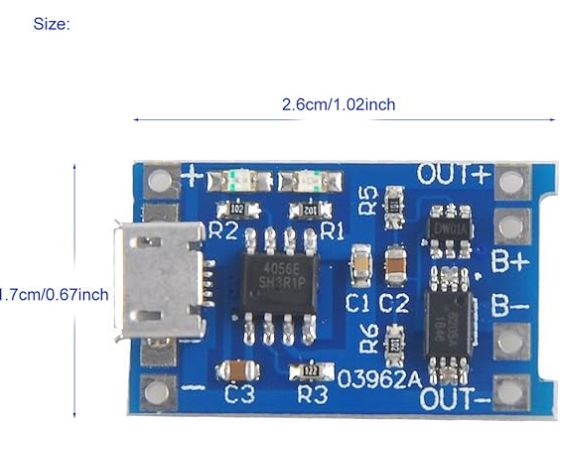

Board size: 2.6 * 1.7CM

Package Including:

10 * TP4056 Charging Module
