Smart Digital SMD PIR Sensor S18-L242B-2 IOT sensor SMD Pyroelectric infrared sensor for security homes
Smart Digital SMD PIR Sensor S18-L242B-2 IOT sensor SMD Pyroelectric infrared sensor for security homes

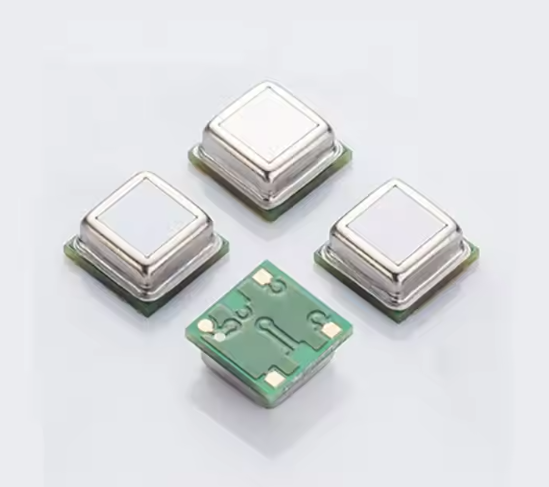

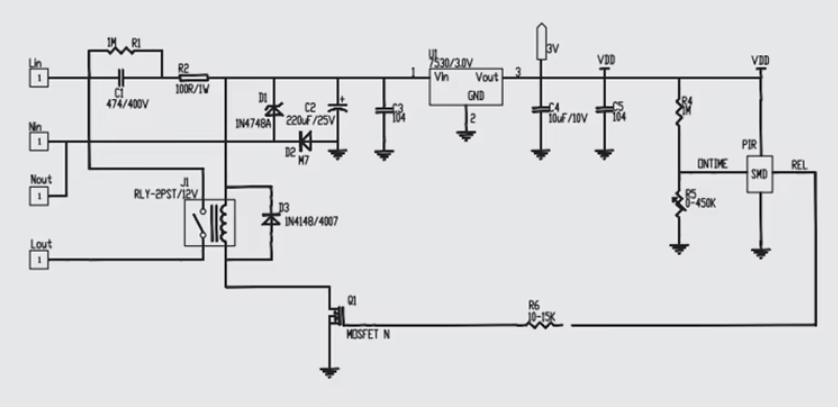

The SMD PIR sensor S18-L242B-2 is a latest smart digital motion detector with a small window size. It offers a complete motion detector solution, with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion siwtch.
The SMD pir sensor S18-L242B-2 includes the time setting.
Features and Benefits
* Digital signal processing (DSP).
* Power adjustable, save more energy.
* Two-way differential high impedance sensor input and temperature compensation.
* Built-in filter, screen the interference by other frequency.
* Excellent power supply rejection, insensitive to RF interference.
* Schmidt REL output.
* SMD design.
