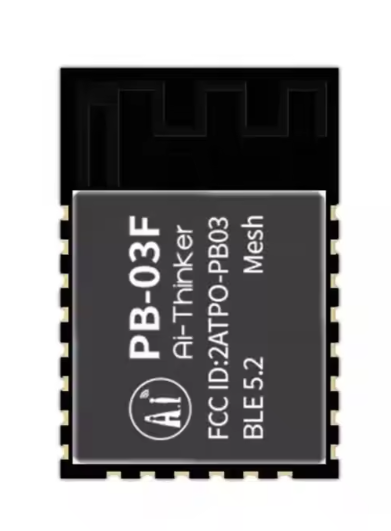

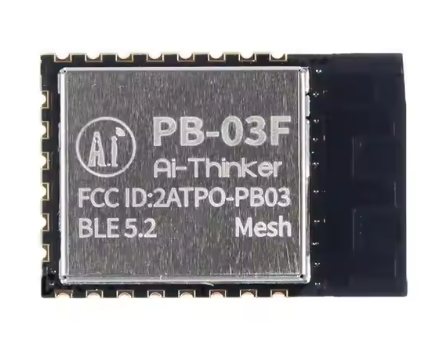

PB-03F BLE5.2 PHY6252 SSOP24 Chip Low Power BT Module With PCB Onboard Antenna
Product Description
PB-03F is a BLE module .The core processor chip PHY6252(SSOP24)of this module is a BLE SoC with high integration and low power consumption,which is specially designed for various applications such as IoT,mobile devices,wearable electronic devices and smart homes.

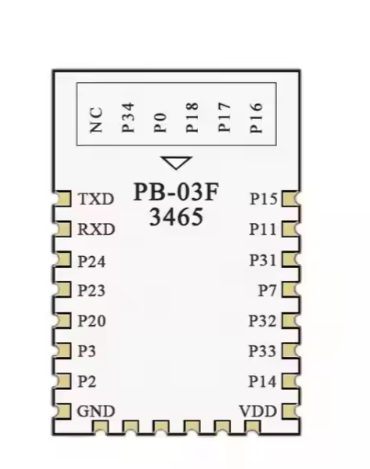

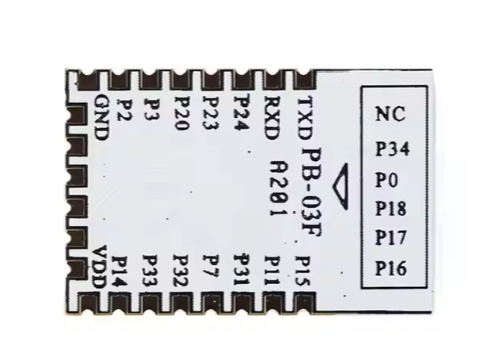

PB-03F module provide rich peripheral interfaces,including UART,PWM,ADC,I2C,SPI,PDM,DMA and up to 19 IOs.
PB-03F module has many unique hardware security mechanisms.Hardware encryption accelerator supports AES algorithm.
PB-03F module supports BLE with low power consumption:BLE 5.2 and BLE mesh.Bluetooth rate
support:125Kbps,500Kbps,1Mbps,2Mbps.Support broadcast expansion,multi-broadcast,channel selection.
PB-03F is a BLE module .The core processor chip PHY6252(SSOP24)of this module is a BLE SoC with high integration and low power consumption,which is specially designed for various applications such as IoT,mobile devices,wearable electronic devices and smart homes.
PB-03F module provide rich peripheral interfaces,including UART,PWM,ADC,I2C,SPI,PDM,DMA and up to 19 IOs.
PB-03F module has many unique hardware security mechanisms.Hardware encryption accelerator supports AES algorithm.
PB-03F module supports BLE with low power consumption:BLE 5.2 and BLE mesh.Bluetooth rate
support:125Kbps,500Kbps,1Mbps,2Mbps.Support broadcast expansion,multi-broadcast,channel selection.
