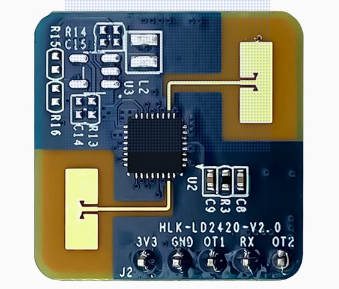

LD2420 Human Body Micro Motion Radar Sensor Module

Product parameters

• Single-chip smart millimeter wave sensor SoC and smart algorithm firmware on board

• Ultra-small module size: 20 mm × 20 mm

• Load default body sensor configuration, plug and play

• 24 GHz ISM band with FCC, CE, and Commission-free spectrum regulatory approvals

• 3.3 V power supply, supports 3.0 V ~ 3.6 Vwide voltage range

• Average operating current 50 mA

• Detection target for motion, micro-motion human body

• Real-time reporting of detection results

• Provide visualization tools to support the configuration of the detection distance

  interval, sub-interval setting sensitivity and results reporting time

• Support induction range division, completely shielding any interference outside the zone

• Proximity 0.2 m sensing, no blind detection zone

• Motion body sensing distance up to 8 m

• Large detection angle, covering a range of ±60°

• Support a variety of installation methods, such as hanging the top, hanging wall

• Independent configuration of trigger and hold states, strong anti-interference capability

Application Scenarios

HLK-LD2420 human body sensing sensor can detect and identify moving, standing and stationary human bodies, and is widely used in various AIoT scenarios, covering the following types.

Smart Home

It senses the presence and distance of the human body and reports the detection results for intelligent control of home appliances by the main control module.

Smart Business

Recognizes the human body approaching or moving away within the set distance interval; lights up the screen in time to keep the device on in the presence of the human body.

Smart Security

Induction access control, building intercom, electronic cat's eye, etc.

Smart Lighting

Identify and sense human body, precise position detection, can be used in public place lighting equipment (sensor lamp, bulb lamp, etc.).
