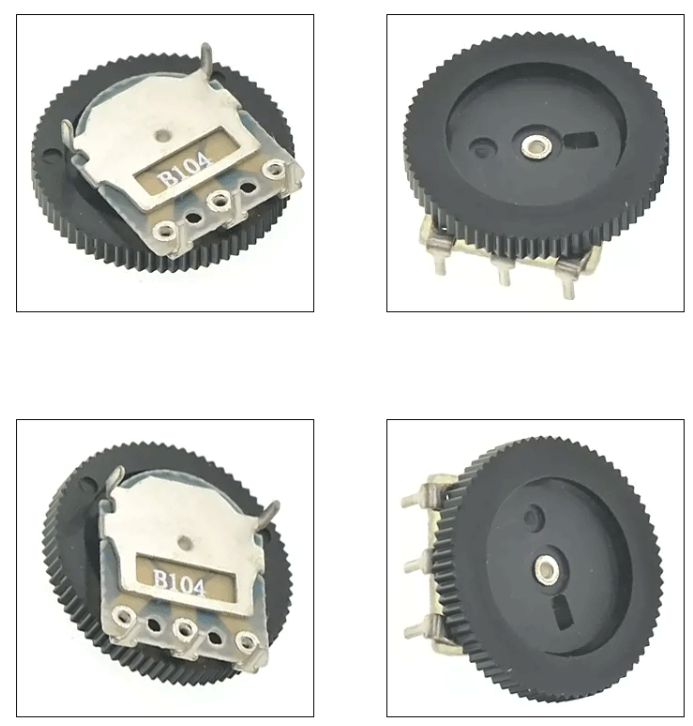

Dial Gear Potentiometer Single Duplex 1K10K100K B102/202/502/103/203/503/104
Dial Gear Potentiometer Single Duplex 1K10K100K B102/202/502/103/203/503/104Dial Gear Potentiometer Single Duplex 1K10K100K B102/202/502/103/203/503/104Dial Gear Potentiometer Single Duplex 1K10K100K B102/202/502/103/203/503/104Dial Gear Potentiometer Single Duplex 1K10K100K B102/202/502/103/203/503/104

Dial Gear Potentiometer Single Duplex 1K10K100K B102/202/502/103/203/503/104

Product Introduction

The dial on the potentiometer generally refers to the dial of the cylindrical edge gear, which can be passed

Overrotation to adjust the resistance value of the potentiometer to achieve the purpose of changing the circuit voltage. General majority
It can be used to adjust the volume of radio, cassette recorder, rereader, MP3, stereo, etc.
Product characteristics
1, support high and low level trigger;
3, strong wear resistance, long life;
2, small size, light weight;

4, high resolution.


Product Parameter

Product name: Gear potentiometer
Resistance range: 500 to 1M
Resistance deviation: 20%
Resistance change characteristics: B
Maximum operating voltage: AC50V DC12V
Rated power: 0.05W
Slide noise: less than 47MV
Residual resistance: 1-2 PIN <10Q 2-3 PIN <10Q
The insulation resistance is More than 100MQ at
DC100V
Withstand voltage: 1 minute at AC100V
Synchronization: -40dB to 0dB
Mechanical characteristics
Rotation Angle: 270° ±5°
Turning torque: 20gf.cm-150gf.cm
Stop resistance: 0.8kg.cm MAX

Product Categories
Related Products
Description

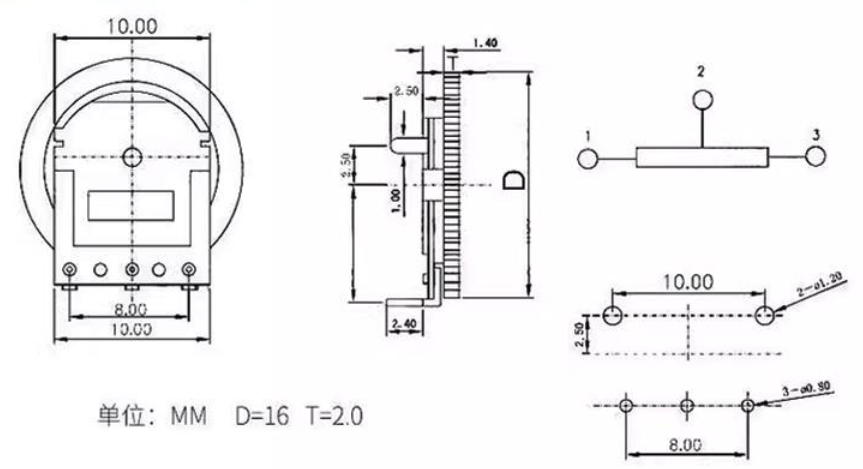

Single dial 16*2MM 3 feet

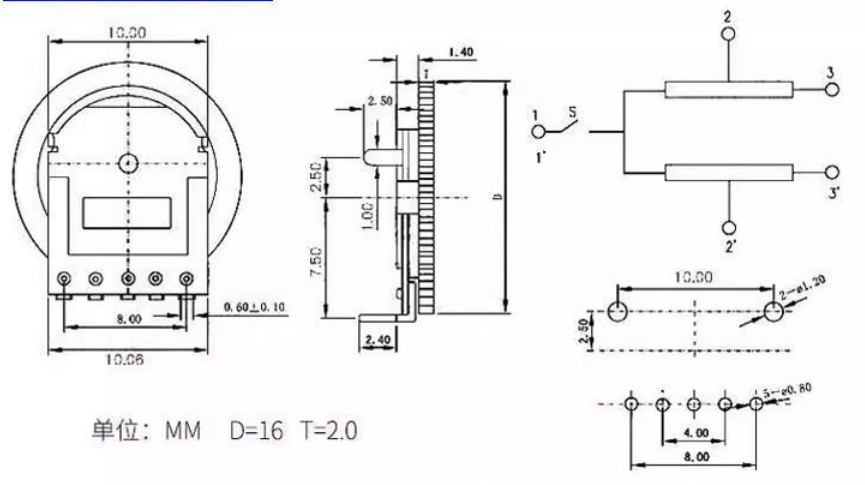

Duplex dial 16*2MM 5 feet
