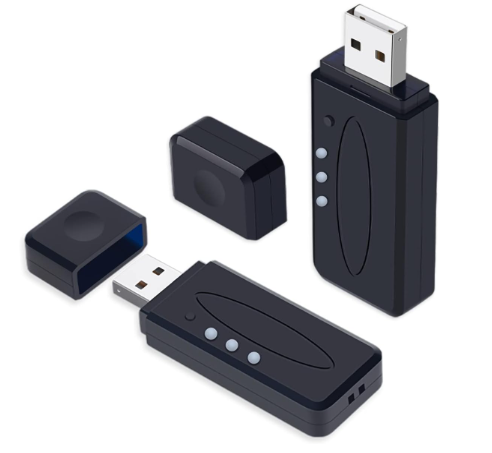

CP11 Remote USB to TTL Adapter USB to Bluetooth Virtual Serial Module Dongle Single Master Single Slave

Using this Bluetooth to USB adapter, you can communicate wirelessly with other devices which has USB interface. Compatible with Android and iOS smartphones. Please note: If you want to communicate with the computer, please use the CP11 Master module adapter.
Built in BT27 BLE 5.1 Bluetooth module for long-distance transmission. The connection transmission distance of CP11 master and slave devices can reach 420 meters, and the transmission rate is 10K Bytes/s
Chip: DA14531. Module model: BT27. Bluetooth specification: BLE 5.1. Module size: 67 (L) x25 (W) x10 (H) mm. Working voltage: 5V. Working current: 10mA. Working temperature -40-+85 ℃. Emission power: -8.5~+13.5dBm. Frequency band: 2.402GHz -2.480GHz ISM band
Module serial port default parameters: 9600bps/8/n/1 (baud rate/data bit/no parity/stop bit). Note: DX-BT27 does not support software flow control. Module BLE UUID: SERVICE UUID: FFE0 NOTIFY/WRITE UUID：FFE1. WRITE UUID：FFE2 .
