Amass XT30 Mini Model Airplane Power Battery Plug XT30U/UL/PW/UPB Plug
Amass XT30 Mini Model Airplane Power Battery Plug XT30U/UL/PW/UPB PlugAmass XT30 Mini Model Airplane Power Battery Plug XT30U/UL/PW/UPB PlugAmass XT30 Mini Model Airplane Power Battery Plug XT30U/UL/PW/UPB PlugAmass XT30 Mini Model Airplane Power Battery Plug XT30U/UL/PW/UPB PlugAmass XT30 Mini Model Airplane Power Battery Plug XT30U/UL/PW/UPB Plug

Amass XT30 Mini Model Airplane Power Battery Plug XT30U/UL/PW/UPB Plug

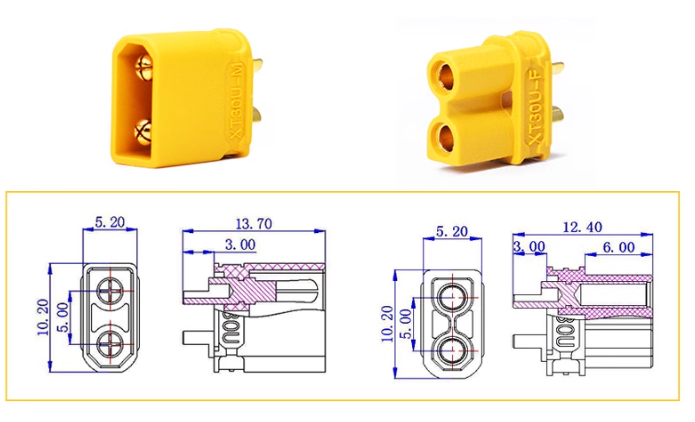

1.XT30U

Product model: XT30U
Product colors: yellow, black
Instantaneous current: 30A
Rated current: 15A
Contact resistance: 0.70m Ω
Rated voltage: DC 500V
Flame retardant grade: UL94 V0
Recommended application: Battery/Controller
Metal material: Copper plated with gold
Recommended wire gauge: 18AWG
Insulation material: PA
Working temperature: -20 ℃ to 120 ℃
Recommended usage times: 1000 Times

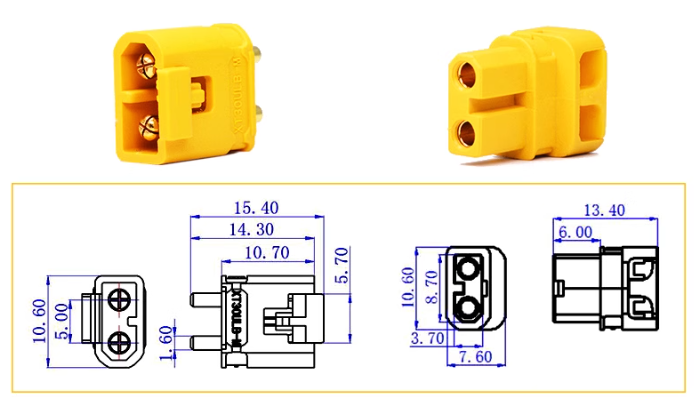

2.XT30UL

Product Model: XT30UL
Product color: Yellow
Instantaneous current: 30A
Rated current: 15A
Contact resistance: 0.65m Ω
Rated voltage: DC 500V
Flame retardant grade: UL94 VO
Recommended applications: controllers, chargers
Metal material: Copper plated with gold
Recommended wire gauge: 18AWG
Insulation material: PA66 DF25 V0
Working temperature: -40 ℃ to 120 ℃
Recommended usage times: 1000 Times

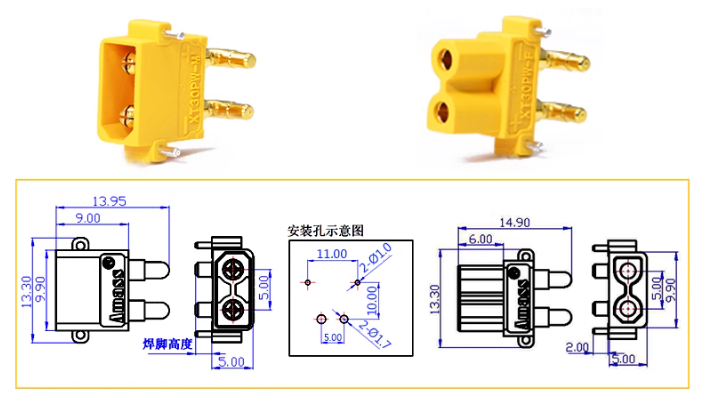

3.XT30PW

Product model: XT30PW
Product color: Black
Instantaneous current: 30A
Rated current: 15A
Contact resistance: 0.80m Ω
Rated voltage: DC 500V
Flame retardant grade: UL94 VO
Recommended applications: Battery/Charger/Controller
Metal material: Copper plated with gold
Recommended wire gauge: 18AWG
Insulation material: PA
Working temperature: -20 ℃ to 120 ℃
Recommended usage times: 1000 Times

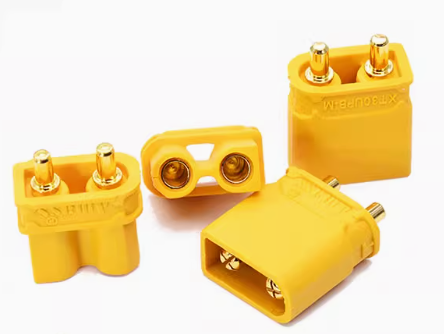

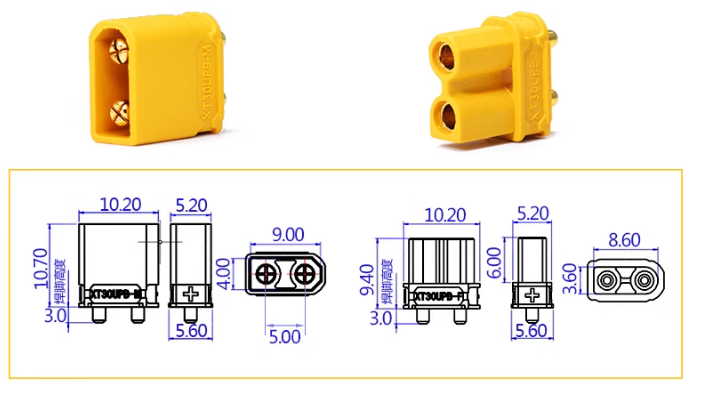

4.XT30UPB

Product model: XT30UPB
Product color: Yellow
Instantaneous current: 30A
Rated current: 15A
Contact resistance: 0.65m Ω
Rated voltage: DC 500V
Flame retardant grade: UL94 VO
Recommended applications: Battery/Charger/Controller
Metal material: Copper plated with gold
Insulation material: PA
Working temperature: -20 ℃ to 120 ℃
Recommended usage times: 1000 Times
