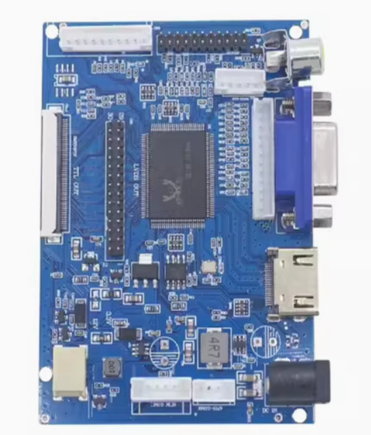

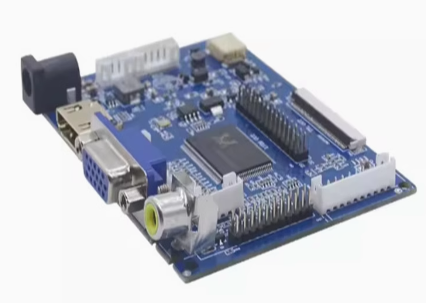

7-Inch 8-Inch LCD Screen 50pin Universal Group Creation At070tn90/92/94 Driver Board Change Car Projection

7-Inch 8-Inch LCD Screen 50pin Universal Group Creation At070tn90/92/94 Driver Board Change Car Projection

1.1 VGA signal input
2.2 AV signal input
3.1 HDMI signal input, and the IC support is HDMI1.1/1.2/1.3
4.1 reverse signal input
5.Support wide voltage input, and can work normally between 5V-24V.
6. Standard backlight 6PIN, interface, can be connected to the external high-voltage plate
7. Driver board integrated LCD screen LED backlight driver board.
8.Standard LVDS signal output, can support single 6, single 8, double 6, double 8 standard LVDS signal LCD screen, but only supports
Screen power supply for the 3.3V LCD screen

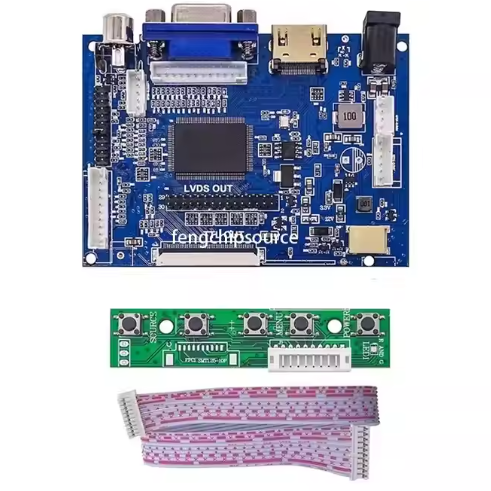

9. Standard keypad interface, and support for dual-colour LED indicator display
10.Support TTL signal output can support AT070TN92 AT065TN14 AT080TN52 AT090TN12 AT090TN10 AT070TN90 AT070TN93 AT070TN94, etc., universal 50PIN interface TTL LCD.
11. With other boards, the following LCDs can be supported
EJ070NA01-1024X600 Resolution
EJ080NA04B-1024X768 Resolution
ZJ070NA01, the model number of the universal 40PIN high resolution LCD
12. With other boards, can also support the Chinese 60PIN LVDS10.1 inch LCD screen.
13. The maximum output display resolution of this driver board is 1920X1080 over 1440X900 display resolution, depending on the IC's operating conditions, increase the heat sink to reduce the IC's operating temperature).
14. The VGA part of this IC can directly input YPBPR signal through the programme.
15. This driver board can increase the remote control function (need to be realised by software).
16. The driver board can automatically detect and display the relevant input voltage information.
17.This driver board can support automatic detection of signal switching function, - this function is customised function.
18. The driver board can add BNC interface --- need to be customised
19. Support reverse control and display AV2, reverse voltage support 50V or less voltage input.
20.The positioning holes of this driver board are four.
